Manufacturer: SALTEK

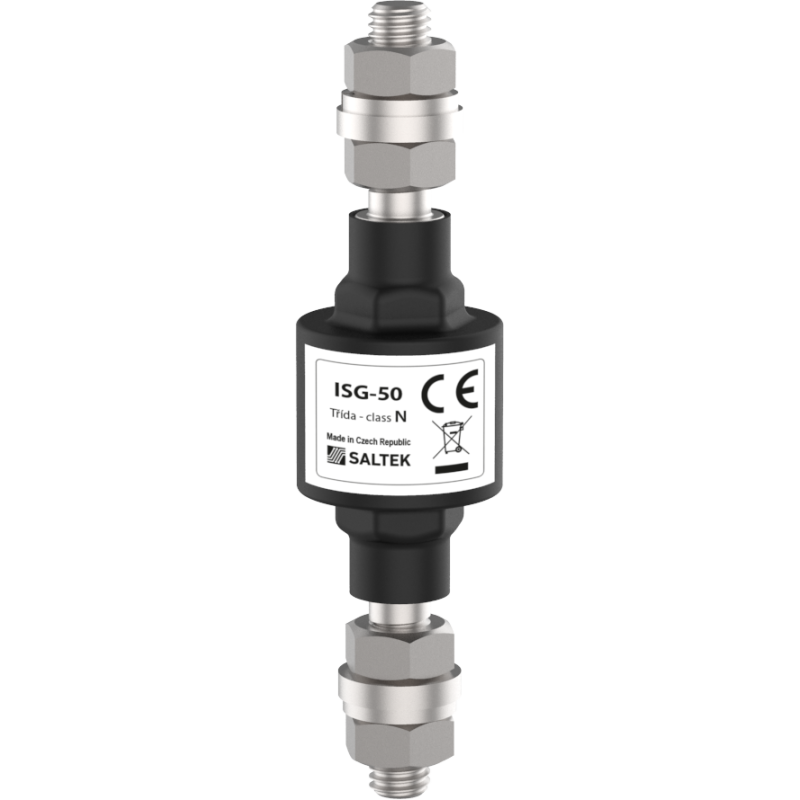

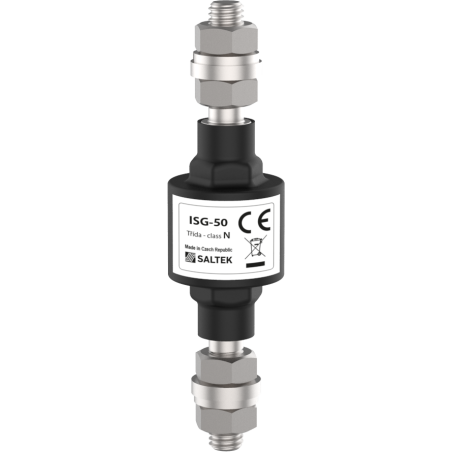

ISG-50 - Isolating spark gap

  • ISG-50
  • Protection rating IP 67
  • Rated power frequency withstand voltage 0.035 kV
Parameter name Parameter value
Classification class N - normal duty
Isolation resistance 100.00 MOhm
Lightning impulse current Iimp 50.00 kA
Rated impulse sparkover voltage Uimp 0.90 kV
Rated power frequency withstand voltage UWAC 0.035 kV
Rated DC withstand voltage UWDC 0.050 kV
Degree of protection IP 67
Range of ambient temperatures (min/max) -40 / 80 °C
According to standard EN 62561-3:2012,IEC 62561-3:2012
ETIM Class EC000510
Customs tariff number 85363090
EAN 8595090540861
