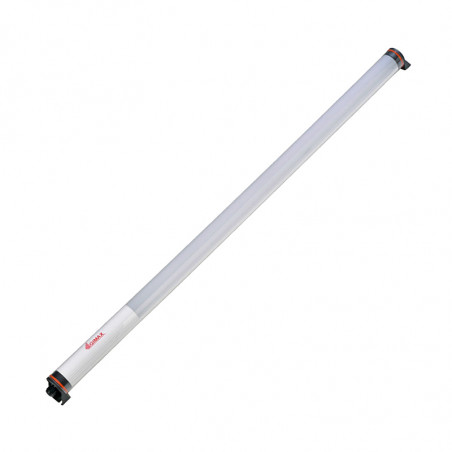

Sirio LED BLM Tube series Ø70 mm
Sirio LED BLM Tube series Ø70 mm

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: GIMAX

Sirio LED BLM Tube series Ø70 mm

SIRIO LED BLM Tube series Ø70 mm

Parameters
  • Polycarbonate or borosilicate glass diffuser
  • Direct 24V DC/AC power supply
  • 230V or 110V available upon request
  • IP67 protection class
  • Operating temperature: -20°C/+50°C
  • O-RING seals with cable gland
  • Average lifespan: 50,000 hours
  • Energy class: A+++


Borosilicate series

18 505 230
No. Mark Light efficiency FLUX Lm (25°C) Length [mm] Power [W] Power [V]
1. BLMBN1212400 2100 505 12 24
2. BLMBN1812400 3060 660 24
3. BLMBN2622400 4340 1060 26 24
4. BLMBN4032400 6690 1465 40 24
5. BLMBN1214800 2100 12 48
6. BLMBN1814800 3060 660 18 48
7. BLMBN2624800 4340 1060 26 48
8. BLMBN4034800 6690 1465 40 48
9. BLMBN1212200 2100 505 12
10. BLMBN1812200 3060 660 18 230
11. BLMBN2622200 4340 1180 26 230
12. BLMBN4032200 6690 1565 40 230


Methacrylate series

18 505 230
No. Mark Light efficiency FLUX Lm (25°C) Length [mm] Power [W] Power [V]
1. BLMMN1212400 2100 505 12 24
2. BLMMN1812400 3060 660 24
3. BLMMN2622400 4340 1060 26 24
4. BLMMN4032400 6690 1465 40 24
5. BLMMN1214800 2170 12 48
6. BLMMN1814800 3060 660 18 48
7. BLMMN2624800 4340 1060 26 48
8. BLMMN4034800 6690 1465 40 48
9. BLMMN1212200 2170 505 12
10. BLMMN1812200 3060 660 18 230
11. BLMMN2622200 4340 1180 26 230
12. BLMMN4032200 6690 1565 40 230

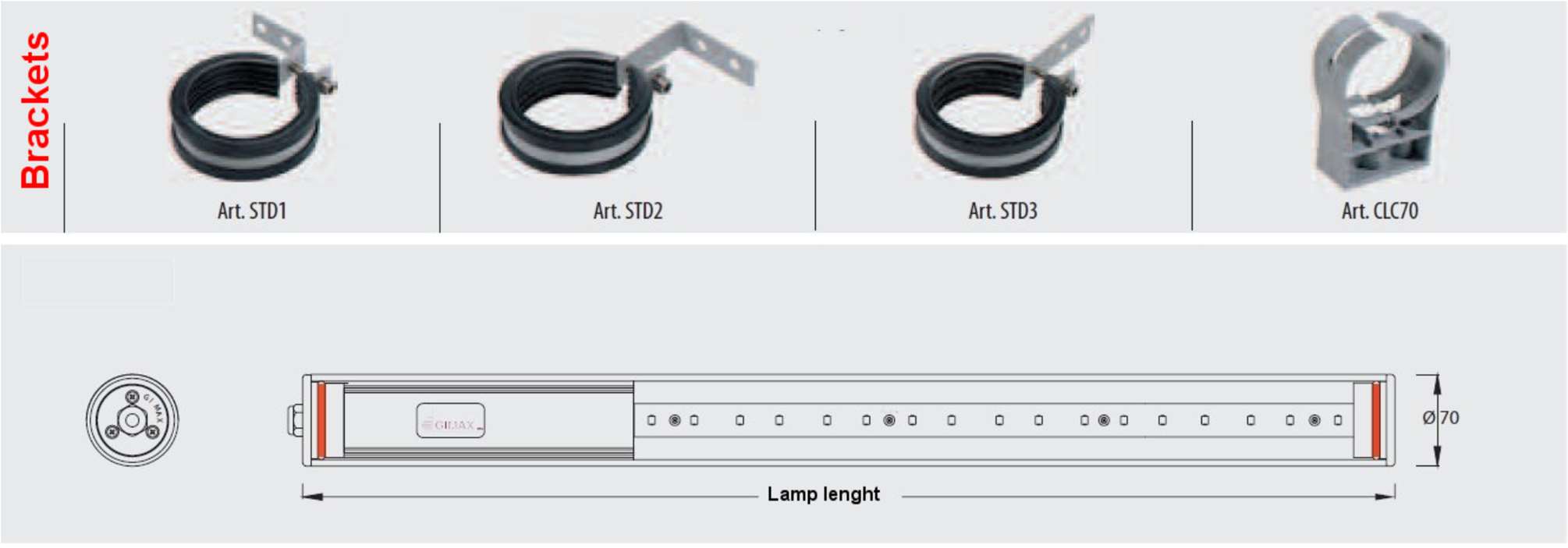

Mounting for SIRO LED LSMN Tube Series Ø70 mm
