AHR 1000 B10 current transducer
AHR 1000 B10 current transducer

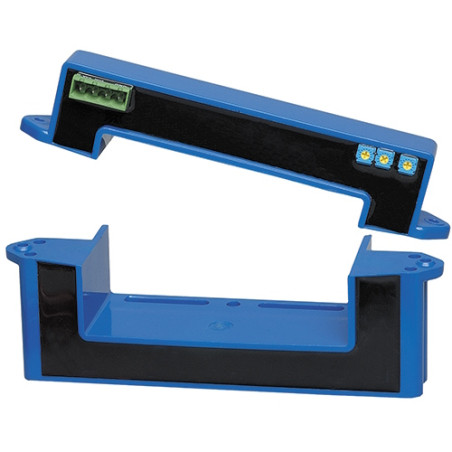

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

AHR 1000 B10 current transducer

  • AHR 1000 B10
  • Accuracy 1,00%
  • Rated Current [A] 1000
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 20...50V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] Panel/On primary bus
  • App Automotive Drive/Power Supplies/Renewable Energy/Automotive Batteries
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 70
  • Frequency response (-3dB) [kHz] 6
  • Feedback loop [open / closed] // Eta technology open

Description

Designed for current measurement in applications such as AC power supplies, motors, inverter-controlled loads, SCR controllers, switched-mode rectifiers, renewable energy systems, and battery backup systems. It enables accurate monitoring of power supply power, motor input power, and inverter output current. Ideal for applications that require continuous condition monitoring and automatic fault detection or prediction.

Applications

  • AC Power Supplies or Motors
  • True RMS Current Measurement - The Most Accurate Way to Monitor Power Supply or Motor Input Power
  • Inverter-Controlled Loads
  • Monitor Inverter Output Current to Indicate Motor and Load Performance
  • SCR Controllers or Switched-Mode Rectifiers
  • Accurate Output Current Measurement
  • Renewable Energy Systems or Battery Backups
  • Continuous Condition Monitoring for Automatic Fault Detection/Prediction

Technical Specifications

Parameter Value
Measured Quantity Current
Rated Current 1000A
Measuring Range 2000A
Output Signal Voltage, DC TRMS 0-10V
Signal Primary AC+DC
Power Supply 20-50V DC
Accuracy 1%
Operating Temperature -40°C…70°C
Technology Open Loop, Hall Effect
Mounting On Rail original
Panel -
