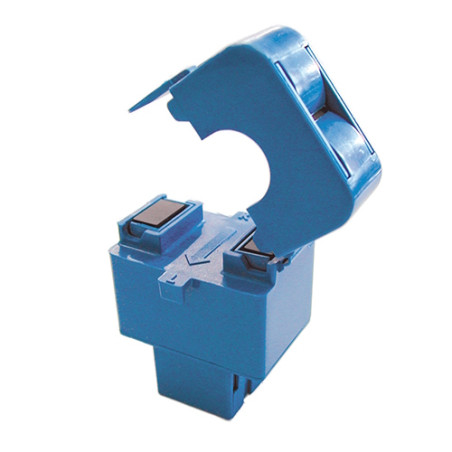

AT 20 B5 current transducer
AT 20 B5 current transducer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

AT 20 B5 current transducer

  • AT 20 B5
  • Accuracy 1,50%
  • Rated Current [A] 20
  • Primary signal [AC / AC+DC / DC] AC
  • Supply voltage [V] Not required
  • Mounting [THT / SMD / DIN / Panel / On primary rail] On the primary bus
  • App Automation/Renewable Energy/Drives
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -20
  • Maximum operating temperature [°C] 60
  • Frequency response (-3dB) [kHz] 0,06
  • Feedback loop [open / closed] // Eta technology Current transformer

Applications:

  • Automation and Monitoring
    Current measurement for process control via distributed PLC or remote control (e.g., SCADA software).
  • Safety and Condition Monitoring
    Load monitoring for protection and predictive maintenance systems (e.g., conveyors, pumps, or HVAC motors).

Technical Data:

Measured quantity Current
Rated current 20A
Measuring range 20A
Output signal DC RMS voltage 0-5V
Signal Primary AC
Power Supply Not Required
Accuracy 1.5%
Operating Temperature -20°C…60°C
Technology Current Transformer
Mounting On Primary Busbar
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Accuracy 1,50%
  • Rated Current [A] 20
  • Primary signal [AC / AC+DC / DC] AC
  • Supply voltage [V] Not required
  • Mounting [THT / SMD / DIN / Panel / On primary rail] On the primary bus
  • App Automation/Renewable Energy/Drives
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -20
  • Maximum operating temperature [°C] 60
  • Frequency response (-3dB) [kHz] 0,06
  • Feedback loop [open / closed] // Eta technology Current transformer

Applications:

  • Automation and Monitoring
    Current measurement for process control via distributed PLC or remote control (e.g., SCADA software).
  • Safety and Condition Monitoring
    Load monitoring for protection and predictive maintenance systems (e.g., conveyors, pumps, or HVAC motors).

Technical Data:

Measured quantity Current
Rated current 20A
Measuring range 20A
Output signal DC RMS voltage 0-5V
Signal Primary AC
Power Supply Not Required
Accuracy 1.5%
Operating Temperature -20°C…60°C
Technology Current Transformer
Mounting On Primary Busbar
