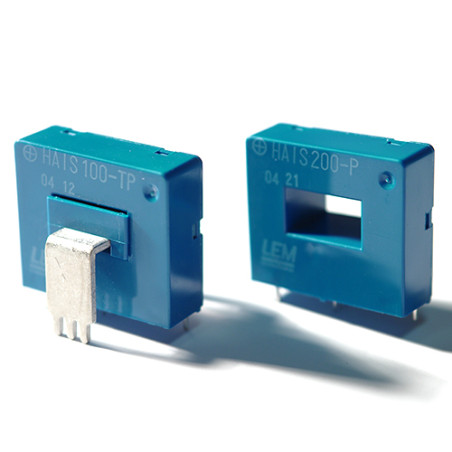

HAIS 200-P current transducer

  • HAIS 200-P
  • Accuracy 1
  • Rated Current [A] 200
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 5
  • Mounting [THT / SMD / DIN / Panel / On primary rail] THT
  • App Drives/Power Supplies/Renewable Energy/Welding
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 85
  • Frequency response (-3dB) [kHz] 50
  • Feedback loop [open / closed] // Eta technology open

Description:

Designed for electronic current measurement: DC, AC, pulsed, etc., with galvanic isolation between primary and secondary circuits.

Main Features:

  • Measurement based on the Hall effect
  • Galvanic isolation between primary and secondary circuits
  • Insulation test voltage 2500V
  • Insulating plastic housing, UL 94-V0 compliant
  • Small size to save space
  • Only one design for a wide current range
  • High immunity to external interference
  • Uref IN/OUT

Applications:

  • Variable speed AC drives and Servo Drives
  • Static Converters for DC Motors
  • Battery-Powered Applications
  • Uninterruptible Power Supplies (UPS)
  • Switched-Mode Power Supplies (SMPS)
  • Power Supplies for Welding Applications

Technical Data:

ParameterValue
Rated Primary Current (RMS)200A
Primary Current Measurement Range±600A
Error at primary current Ipn and temperature Ta=25°C≤ ±1%· Ipn
Rated sensitivity at primary current Ipn0.625 V/I_pn
Output voltage (analog) at primary current IpnU_OE+〖0.625∙I〗_p/I_pn V
Reference voltageOutput voltage2.5±0.025V
Output impedanceTypical 200Ω
Load impedance≥ 200kΩ
Load resistance≥ 2kΩ
Internal output resistance< 5Ω
Supply voltage (±5%)5V
Current consumption at 5V power supply< 19mA
Operating temperature-40÷85°C
Storage Temperature-40÷85°C
Weight20g
Primary Wire Hole Size15.3x8.2mm
Frequency Response (-3dB)DC÷50kHz
