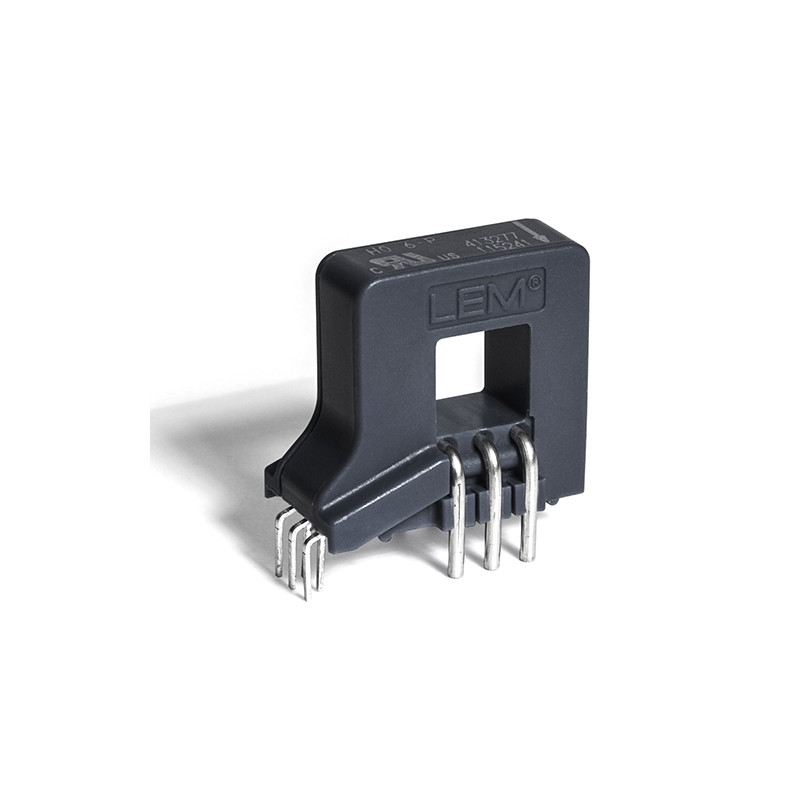

HO 6-P current transducer

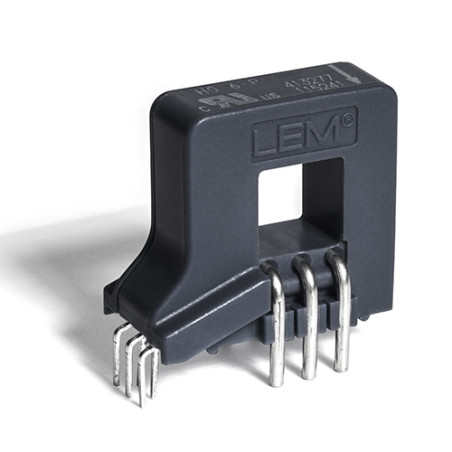

HO 6-P current transducer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

HO 6-P current transducer

  • HO 6-P
  • Accuracy 1.35
  • Rated Current [A] 6
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 5
  • Mounting [THT / SMD / DIN / Panel / On primary rail] THT
  • App Automotive Drive/Power Supplies/Renewable Energy/Welding Machines
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 105
  • Frequency response (-3dB) [kHz] 250
  • Feedback loop [open / closed] // Eta technology open

Description

Designed for electronic current measurement: DC, AC, pulsed, etc., with galvanic isolation between primary and secondary circuits.

Main Features

  • Hall Effect Measurement
  • Galvanic Isolation between Primary and Secondary Circuits
  • 4300V Insulation Test Voltage
  • Low Power Consumption
  • Single +5V Power Supply
  • Fixed Offset and Sensitivity
  • Overcurrent Detection 2.63 × IPN (Peak Value)
  • Memory Control
  • Small Size to Save Space
  • Only One Design for a Wide Primary Current Range
  • High Noise Immunity External
  • High insulation resistance
  • Fast response

Applications

  • AC Variable Speed ​​Drives
  • Static Converters for DC Motor Drives
  • Battery-powered Applications
  • Uninterruptible Power Supplies (UPS)
  • Switched-Mode Power Supplies (SMPS)
  • Power Supplies for Welding Applications
  • Solar Inverter on the DC Side of the Inverter (MPPT)
  • Junction Box

Technical Data

Parameter Value
Maximum Supply Voltage 6.5V
Maximum Primary Conductor Temperature 125°C
Electrostatic Discharge Voltage (HBM) 2kV
Supply Voltage 5V DC
Output Voltage 0÷5V
Temperature Operating Temperature -40÷105°C
Storage Temperature -40÷105°C
Weight 10g
Rated Primary Current RMS Ip 6A
Primary Current Measuring Range ±20A
Current Consumption 19mA
External Voltage Reference 0.5÷2.65V
Theoretical sensitivity 100 mV/A (600mV for rated current Ip, 5V supply)
Sensitivity error ±0.85%
Less
Read more
49.20 PLN
49.20 PLN Gross price / pcs.
40.00 PLN Net price / pc.
Tax included

Availability: Please be advised that this product is out of stock
