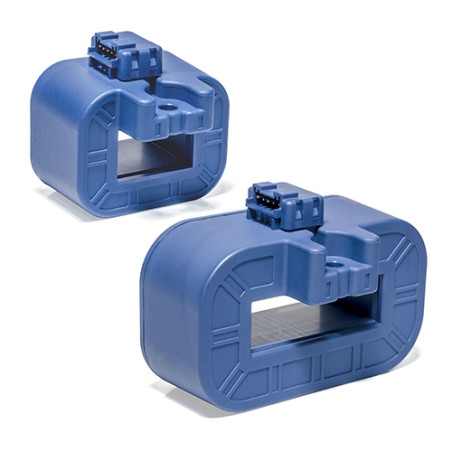

HOYS 500-S-0100 current transducer
HOYS 500-S-0100 current transducer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

HOYS 500-S-0100 current transducer

  • HOYS 500-S-0100
  • Accuracy 1,25%
  • Rated Current [A] 500
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 5V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] On the primary bus/Panel
  • App Automation/Drives/Renewable energy/Power supplies/Welding machines
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 105
  • Frequency response (-3dB) [kHz] 180
  • Feedback loop [open / closed] // Eta technology open

Applications:

  • Variable speed AC motor drives and servo drives
  • Static converters for DC motor drives
  • Battery-powered applications
  • Uninterruptible power supplies (UPS)
  • Switched-mode power supplies (SMPS)
  • Power supplies for welding applications
  • Junction boxes
  • DC-side solar inverter (MPPT)

Technical data:

Measured quantity Current
Rated current 500A
Measuring range ±1250A
Output signal Voltage, ±2V
Primary signal AC+DC
Power supply 5V DC
Accuracy 1.25%
Operating Temperature -40°C…105°C
Technology Open Loop, Hall Effect
Mounting On Primary Rail
