LTC 350-TF current transducer
LTC 350-TF current transducer

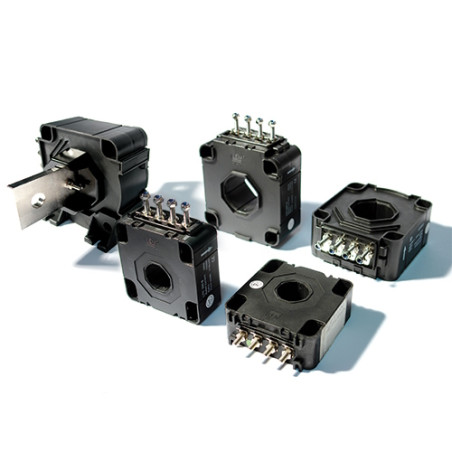

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

LTC 350-TF current transducer

  • LTC 350-TF
  • Accuracy 0,50%
  • Rated Current [A] 350
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 15...24V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] Panel
  • App Automation/Drives/Renewable Energy/Power Supplies
  • Output signal type [current/voltage] current
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 85
  • Frequency response (-3dB) [kHz] 100
  • Feedback loop [open / closed] // Eta technology closed

Applications:

  • Single-phase or three-phase inverters
  • Choppers for driving and braking
  • Drive converters
  • Auxiliary converters
  • Battery chargers

Technical data:

Rated current 350A
Measuring range ±1200A
Output signal Current, ±175mA
Primary Signal AC+DC
Power Supply 15…24V DC
Accuracy 0.5%
Operating Temperature -40°C…85°C
Technology Closed feedback loop, the phenomenon Halla
Mounting Panel
