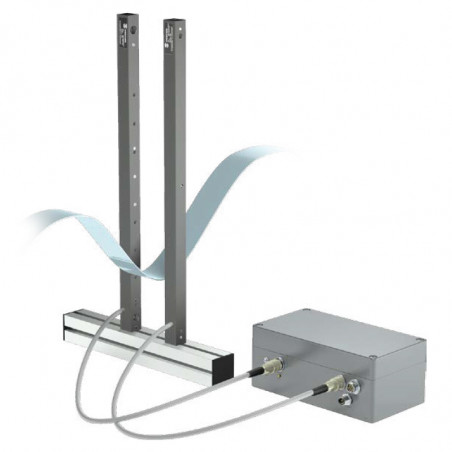

Light barrier transmitter - receiver (infrared radiation) - type DHS - 80
Light barrier transmitter - receiver (infrared radiation) - type DHS - 80

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Vester

Light barrier transmitter - receiver (infrared radiation) - type DHS - 80

Technical data

Operation light type: constant, PIC controller
Supply voltage: 24V (± 10%)
Current consumption: 150mA
Operation type: dynamic
Sensivity: > 0,05mm, depends on distance transmitter - receiver
Output with LED: 0...10V if the light beam stops green LED glows
Output function: NO
Output current: max 100mA, short circuit protection
Pulse length: 10ms, adjustable (1-100 ms.) 10 ms
Switching frequency: 100Hz
Operating temperature: 0...60°C
EMC: IEC 801.... CE
Type of protection: IP 65

Accuracy

standard: transmitter - receiver distance 1000mm
material thickness: > 0,05m

Dimensions [mm]

Memory configuration
Channel 0 10 V
Channel 1 9 V
Channel 2 8 V
Channel 3 7 V
Channel 4 6 V
Channel 5 5 V
Channel 6 2 V
Channel 7 0 V
BARIERY ŚWIETLNE NADAJNIK -ODBIORNIK (PROMIENIOWANIE PODCZERWONE)TYPU DHS-80 wymiary

Amplifier

BARIERY ŚWIETLNE NADAJNIK -ODBIORNIK (PROMIENIOWANIE PODCZERWONE)TYPU DHS-80 wzmacniacz

Caution
In the standard configuration, both memories are programmed with the same values! With an additional programming device, each Channel can be programmed with any voltage from the 0 ... 10V range.

Ordering table

Type Light barrier Terminals - 4-pole socket M12
DHS80, kit 8600-00110-0000 BARIERY ŚWIETLNE NADAJNIK -ODBIORNIK (PROMIENIOWANIE PODCZERWONE)TYPU DHS-80 opis wyprowadzeń
DHS80/AE, amplifier 8600-00110-0001
DHS80/transmitter 8600-00110-0002
DHS80/receiver 8600-00110-0003
