Manufacturer: HTP - High Tech Products

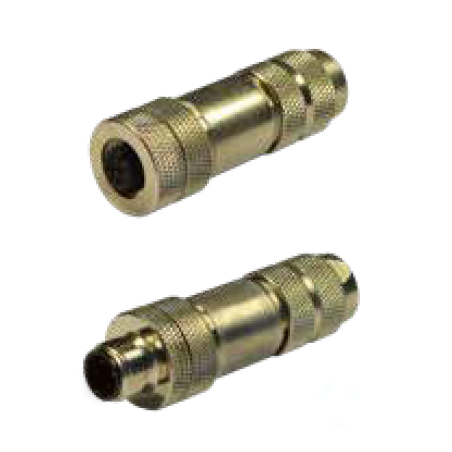

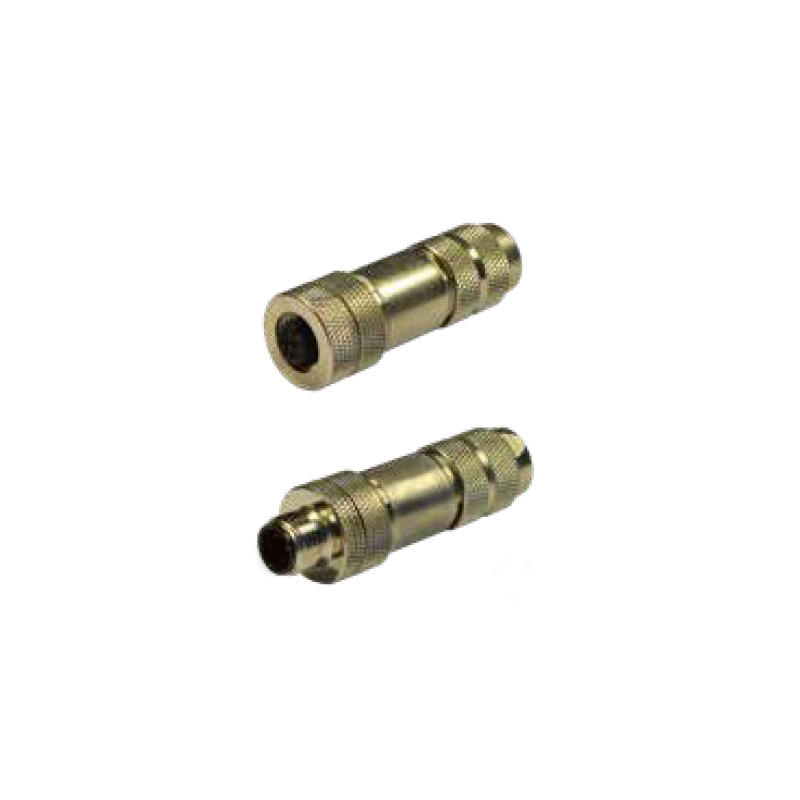

M12 circular connector for mounting 12M14000

  • 12M14000
  • Type Round connector for mounting
  • Housing type Straight 180°
  • Colour Black
  • Mounting type M12 coding-A
  • contact Male
  • Suitable for cable gland Standard PG9
  • Tailored for IEC 61076-2-102
  • Number of contacts 4 pins

M12 series field-mountable connector, fully shielded.

<

Technical Data:

table border="1" style="border-collapse: collapse;"> Terminal Type Screw Contacts Contact Screw Torque 0.2 N*m Housing Material Nickel-plated brass Contact Material Gold-plated brass Coupling Nut Type Round Knurled Coupling Nut Material M8 Nickel-plated brass Coupling Nut Torque M8 0.4 N*m Nominal Voltage 250V AC/DC Nominal Current 4A Temperature Range -25 °C +85 °C Material: O-ring NRB Rubber Suitable cable Ø4 - 8mm
