Manufacturer: H.T.P.

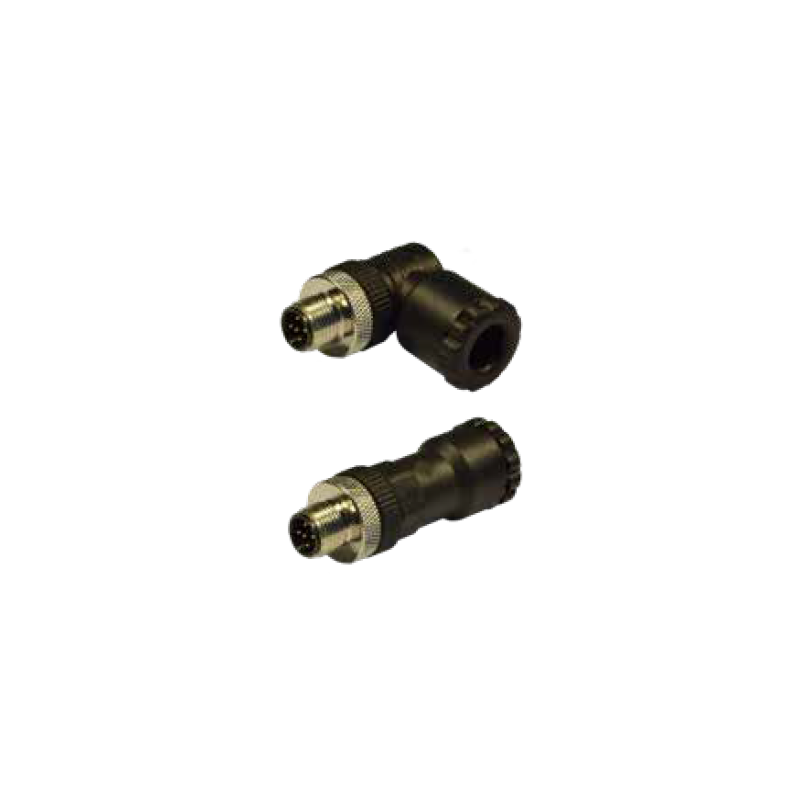

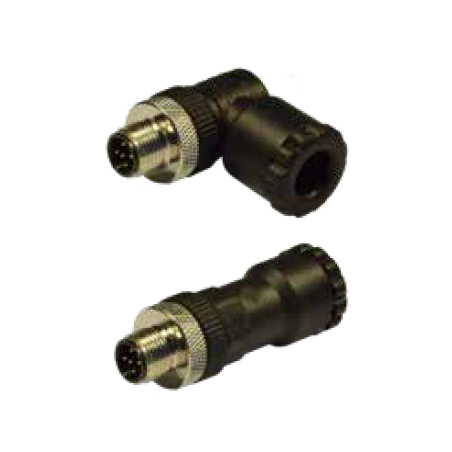

M12 circular connector for mounting B-12ML5000

  • B-12ML5000
  • Type
  • Housing type
  • Colour Black
  • Mounting type
  • contact
  • Suitable for cable gland
  • Tailored for
  • Number of contacts

M12 series B-coded connector, for mounting.

Technical data:

Tip type Screw contacts
Contact screw torque 0.2 N*m
Housing material PA66 UL94-V2
Contact Material Gold-Plated Brass
Coupling Nut Type Round Knurled
M12 Coupling Nut Material Nickel-Plated Brass
M12 Coupling Nut Tightening Torque 0.4 N*m
Nominal Voltage 60V AC/DC
Nominal Current 4A
Temperature Range -40°C +90°C
Material: O-ring NRB Rubber
Suitable cable Ø cables 4-8mm
Ø cables 6-19mm
dual output Ø 5mm (max.)
