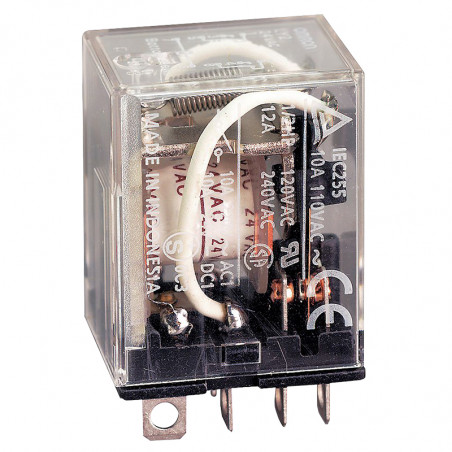

Mini power relays - LY series

Mini power relays - LY series



technical data
• Connector type
soldering terminals, for  bases
• Connector:
2 or 4 switching over connectors
• Connector material
AgCdO
• Nominal load
10 A @240 V AC,   10 A @ 24 V DC
• Current:
10 A
• Voltage
250 V AC, 125 V DC
• Min /max switching power
5 V DC, 100 mA / 1110 VA, 240 W
• Operation and fall time
max. 25 ms
• Ambient temperature
-25 do 55°C
• mechanical withstand
AC: 50 min / DC: 100 minswitching cycles
•Dimensions
21,5 x 28 x 36 mm
• Certificate
UL, CSA, SEV, LR, VDE,TÜV

TypeCoil nominal voltageCoil nominal currentCoil resistance
LY2 12DC 12 VDC 75 mA 160 Ω
LY2 24DC 24VDC 37 mA 650 Ω
LY2 24AC 24 VAC 59 mA 180 Ω
base
PTF-08A-E DIN assembled or on the base plate
PT08-0 PCB assembled
PT08 solder terminal from behind
LY4 12DC 12 V DC 75 mA 160 Ω
LY4 24DC 24VDC 37 mA 650 Ω
LY4 220/240AC 24 VAC 59 mA 160 Ω
base
PTF-14A-E DIN assembled or on the base plate
PTI 4-0 PCB assembled
PTI 4-0 solder terminal from behind
