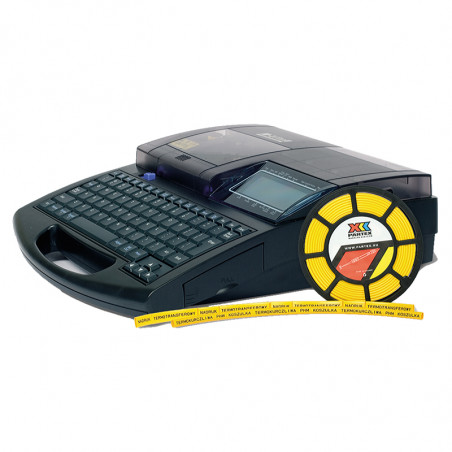

MK8-PRO -Professional thermal transfer printer
MK8-PRO -Professional thermal transfer printer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Partex Marking Systems

MK8-PRO -Professional thermal transfer printer

- Professional, very efficient printer for making cable labels by users.
- Passes, prints, cuts profiles which are inserted from outside or rolled out from inside cassettes.
- Text inserted by a build in keyboard or transmitted from the computer.
- Easy to use, excellent for electric and control cabinets marking.


Properties
Temperature range
Operation temperature:    15°C - 35°C Storage temperature:        0°C - 40°C
Profile temperature: 25°C
Thermo transfer overprint
Resolution            300 dpi
Print speed
18.5 mm/s - normal mode for profiles
25 mm/s - fast mode for profiles
25 mm/s - for adhesive tapes
Text height
2, 3 or 6 mm (narrow or wide)
Maximal text line quantity
2 lines for profiles and adhesive tapes.
Computer cooperation
Software + PC wire
Internal memory
Max 15000 characters
Characters quantity to be transmitted from PC
Single max 2500 characters
Power supply
Supplier 100~240 V AC (50~60 Hz)
Power: 13 W
CE certyfied
Dimensions and weight
(L x W x H): 250 x 300 x 85 mm Weight: 2 kg


Kit content
MK8-PRO-SET Printer MK8-PRO,
Black tape 100 m, profile slideway
supplier, supply cable, PC cable, software

Specification
MK8-PRO  is a portable thermotransfer profile printer, which allow to quickly make your own cable labels. Printer can be controller with a software allowing to download Excel files. (.csv extension)
MK8-PRO is a great solution for fitters and producers of control cabinets. It allows to write up to 15000 characters in the internal memory. Symbol library allows to print symbols like Ω, grounding etc.
Because of a build in keyboard, display and wide range of functions it is a very efficient device.
Individual controller allows to print any objects, example from Excel program.

Profiles for overprint
• PO/POZ profiles with diameter 1.3 - 5.5 mm (POZ non halogen)
• PHM thermo shrinking sleeves. 2.4 - 6.4 mm before shrinking
• PP profile height 4.6 i 9.0 mm for tags PT/PT+/PTZ/PTC and PM, PTM and PS
• PP profile height 6.3 i 11.0 mm for Wago (TopJobs), Phoenix Contact, Entrelec connectors
• PPA adhesive PCV tape
• MK8-PL adhesive tape. width 6 mm, 9 mm and 12 mm
• PO-068 - new profile for cable marking, used with grips PKH or POH

Accessories for MK8-PRO

Kit content
MK8-RB-BLACK Colour tape 100 m black
MK8-RB-WHITE Colour tape  85 m white
MK8-CLEAN slide way cleaning set (3 pce.)
MK8-CU set knife+limiter
MK8-TA profile slideway
MK8-HC Suitcase for MK8
MK8-BR Bracket for discs
MK8-CW Disk stabiliser
MK8-PRO-USB adapter USB - LPT
MK8-AF Automatic profile feeder
MK8-TW Profile heater
MK-STV stand for roller with profiles
stand for roller with profiles Suitcase for MK8

Profile PO
Type Type in non halogen version Diameter max/min [mm]

Section
[mm2]

 Packing
PO-01 POZ01 1.3/1.8 0.25 250 m
PO-02 POZ02 1.7/2.2 0.5 250 m
PO-03 POZ03 2.0/2.5 0.75 250 m
PO-04 POZ04 2.2/2.8 1.0 200 m
PO-05 POZ05 2.7/3.5 1.5 200 m
PO-06 POZ06 3.2/4.0 2.5 200 m
PO-068* PRZ071* 6.8/7.0 - 4.5 m/50m
PO-07 POZ07 3.8/4.7 4.0 100 m
PO-08 POZ08 4.6/5.5 6.0 100 m
PO/POZ


PO 068


Shrinking sleeves PHM

Type Diameter before shrinking [mm] Diameter after shrinking[mm] package
PHM20024 2.4 1.2 150 m
PHM20032 3.2 1.6 150 m
PHM20048 4.8 2.4 150 m
PHM20064 6.4 3.2 150 m
PHM

Profile PP

Type Width[mm] Packing Fot tags
PP-046 4.6 disc 15 m PT+, PTC, PTZ, PM-10
PP-063 6.3 disc 15 m Phoenix Contact connectors
PP-09 9.0 disc 18 m PM-20, PS
PP-110 11.0 disc 12 m Wago (TopJobs) connectors
PPA-09 9.0 disc 10 m adhesive for devices
PP

Adhesive labels
Type Width [mm] Colour Length [m] packing
MK8-PL06 6 yellow 30 1 cassette
white 30
silver 27
MK8-PL09 9 yellow 30 1 cassette
white 30
silver 27
MK8-PL12 12 yellow 30 1 cassette
white 30
silver 27
MK8-PL
