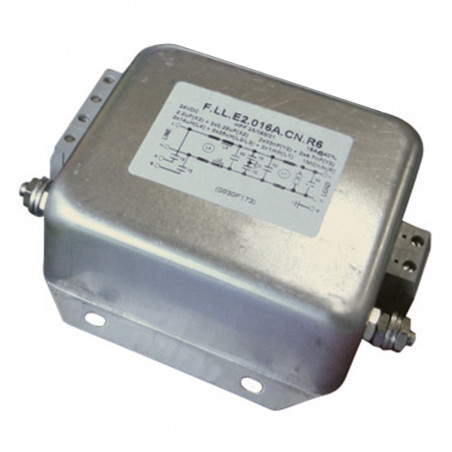

One phase filters F.LL.E2.series *** AI, AS

Electrical data

Nominal voltage (UR): 250V 50/60HZ
Nominal current (IN): at ambient temperature 40°C
Leakage current (IL): maximum value at 250V, 50Hz
Voltage test (2s): line - ground 2700 VDC and/or 800 VAC
line - line 1075 VDC
Climatic category: HPF (25/85/21)
Temperature range: -25°C - 85°C

Type IR
[A]		 L1
[mH]		 L2
[mH]		 Cx
[µF]		 Cy1
[pF]		 Cy2
[pF]		 IL
[mA]		 R
[MΩ]		 Scheme
drw. nr		 Casing
drw. nr
F.LLE2006A.AS.01 6 2 x 2,4 2 x 2,4 4 x 2,4 2 x 33000   3 2 x0,62 A A
F.LLE2010A.AI.04 10 2 x 1,0 2 x 1,0 2 x 0,6 2 x 15000 2 x 2500 1,8 0,33 B B
F.LL.E2010.AS.01 10 2 x 1,3 2 x 1,3 4 x 2,2 2 x 33000   3 2 x 0,62 A A
F.LL.E2016A.AS.01 16 2 x 0,96 2 x 0,96 4 x 2,2 2 x 33000   3 2 x 0,62 A A
F.LL.E2020A.AI.04 20 2 x 1,8   2 x 0,68 2 x 4700   0,5 0,24 C C

Scheme A
FILTRY JEDNOFAZOWE SERIA F.LL.E2. *** AI, AS schemat A		 Scheme B
FILTRY JEDNOFAZOWE SERIA F.LL.E2. *** AI, AS schemat B
Scheme C
FILTRY JEDNOFAZOWE SERIA F.LL.E2. *** AI, AS schemat C		 Casing A
FILTRY JEDNOFAZOWE SERIA F.LL.E2. *** AI, AS obudowa A
Casing B
FILTRY JEDNOFAZOWE SERIA F.LL.E2. *** AI, AS obudowa B		 Casing C
FILTRY JEDNOFAZOWE SERIA F.LL.E2. *** AI, AS obudowa C

Characteristics – attenuation

................... - symmetrical (line-line)
___________ - asymmetrical (line-ground)
