One phase semiconductor AC relays - PS series
  • One phase semiconductor AC relays - PS series

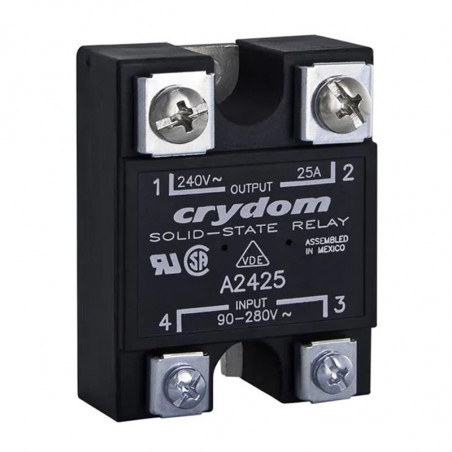

Photos are for informational purposes only. View product specification

Manufacturer: Crydom

One phase semiconductor AC relays - PS series

One phase semiconductor AC relays - PS series

Technical data
• Insulation voltage
4000 VRMS
• Input/output capacity
8 pF
• Operation temperature range
-40°C - 80°C
• Operation frequency range
47 - 63 Hz
• Switching on method
at max voltage-

recommended for inductive load
•Build in diode for turning on signalization
Available options:
•G- Build in diode for turning on signalization(Uwej=4,5-32 VDC)

SymbolInput dataOutput dataCharacteristic
Control voltage
VDC
Input current
[mA]
Load current
A RMS
Voltage range
VRMS
Max voltage
Vpeak
I2t
[A2s]
PSD2410 3 - 32 2 0,4 - 10 90 - 280 600 60 1
PSD2425 0,4 - 25 90 - 280 600 260 2
PSD2450 0,4 - 50 90 - 280 600 1620 3
PSD2490 0,4 - 90 90 - 280 600 6000 4

Drawing 1
Drawing 2
Drawing 3
Drawing 4
//
