SP series - single-row connectors up to 700A to 1000V AC / 1500V DC

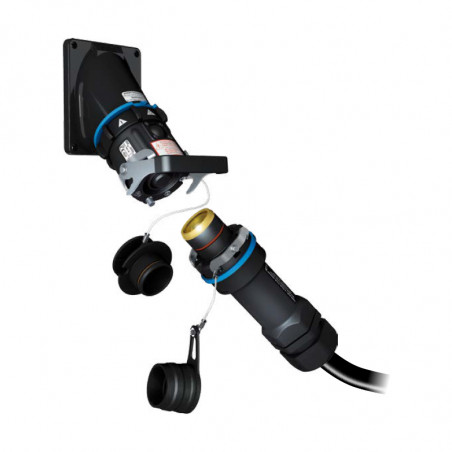

Single-pole switch up to 700A up to 1000V AC/1500V DC

  • Electromechanical interlocking system
  • Shock protection from live parts
  • 5 mechanically fixed positions for each phase L1, L2, L3, N + E
  • Additional protection with different colors
  • IK08 glass-fiber reinforced thermoplastic housing
  • Silver contacts with front pressure for optimal current transfer
  • Main current circuit: max. 700 A / 1000 V AC / 1500 V DC, connection 95 – 400 mm²
  • Current contact circuit: max. 6 A / 230 V, connection 1.5 – 4 mm²
  • IP66/67
Built-in socket (Without cable lug/ferrule) Modular adapter for 70° superstructure, plastic
Item no. Item no.
LI 4 544 001 L1 4 548 001
L2 4 544 002 L2 4 548 002
L3 4 544 003 L3 4 548 003
N 4544 00N N 4548 00N
E 4544 00T E 4548 00T
+ 4544 00P + 4548 00P
- 4544 00M 4548 00M
Color marking according to European code Color marking according to European code
Adapter Cable lug/sleeve* Item no. Item no.
Article no. Cable cross-section (mm2) Cable lug Sleeve
For both the built-in DC socket and the built-in plug, mounting the adapter downward is recommended. 454 A027 95 454 A95 CV 454 A95 DV
120 454 A12 CV 454 A12 DV
150 454 A15 CV 454 A15 DV
185 454 A18 CV 454 A18 DV
240 454 A24 CV 454 A24 DV
300 454 A30 CV 454 A30 DV
400 454 A40 CV 454 A40 DV
Plastic handle *Use the handle to select the sleeve.
Cable cross-section (mm2) Ø Art No
95 to 240 / 17-38 mm 454 A753
300 to 400 / 35-48 mm 454 A783
