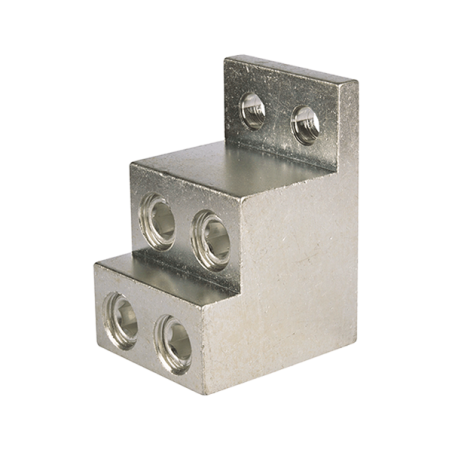

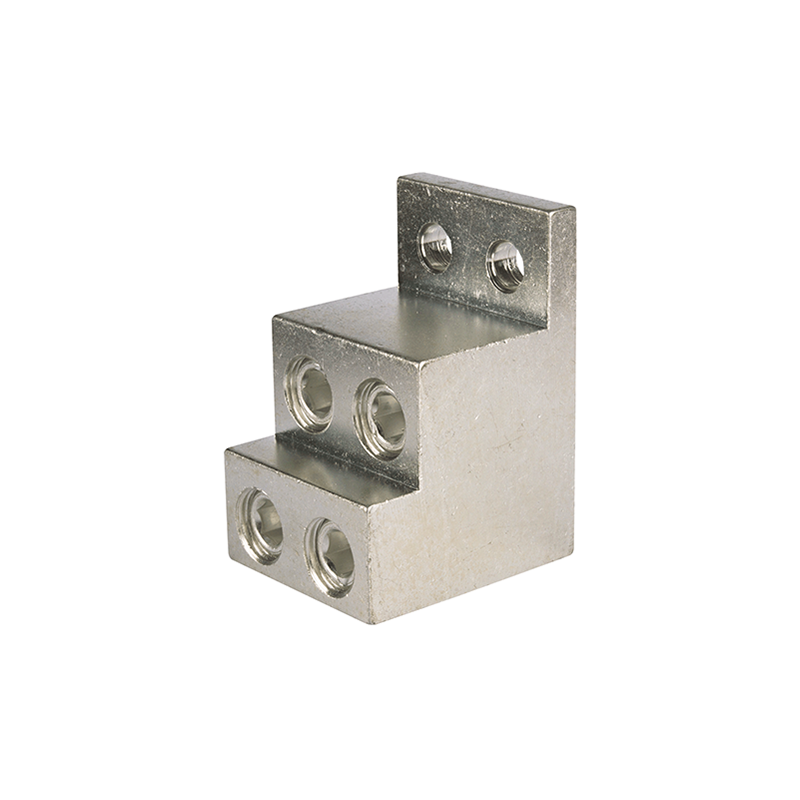

OTH240-4 4xAl/Cu 85-240 mm² 1250A Device terminal MAC4240A14
OTH240-4 4xAl/Cu 85-240 mm² 1250A Device terminal MAC4240A14

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: MOREK

OTH240-4 4xAl/Cu 85-240 mm² 1250A Device terminal MAC4240A14

  • MAC4240A14
  • Width (mm) 54
  • Depth (mm) 94
  • Colour Inne
  • Transparent cover Nie
  • Height (mm) 63
  • Mounting method Direct mount
  • Rated Current [A] 690
    1250
  • Number of poles 1
  • Halogen-free Yes
  • Cross-section of connectable multi-core cable [mm²] 85..240
  • Type of electrical connection Pin connection
    Screw connection
  • Insulating body material Brak
  • Flammability class of the insulating material according to UL94 NA
  • Explosion-tested version "Ex e" NO
  • Closing plate required NO
  • Distance of the center drilled hole [mm] UN
  • Connectable cross-section of fine wire without cable end sleeve [mm²] 85..240
  • Connectable cross-section of fine wire with cable end sleeve [mm²] 85..185
  • Cross-section of connecting wire, solid wire [mm²] NA
  • Number of terminals per pole 4
  • Working temperature UN
