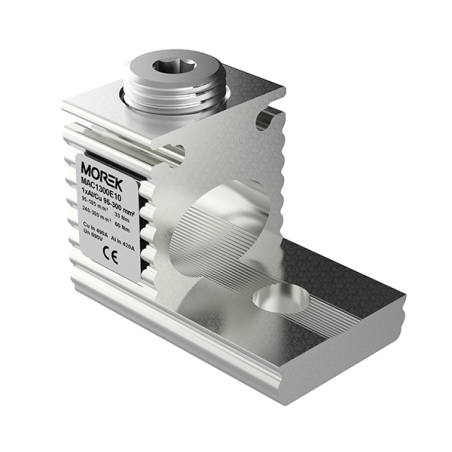

OT300 1xAl/Cu 95-300 mm² MAC1300E10 device clamp
OT300 1xAl/Cu 95-300 mm² MAC1300E10 device clamp

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: MOREK

OT300 1xAl/Cu 95-300 mm² MAC1300E10 device clamp

  • MAC1300E10
  • Width (mm) 40
  • Depth (mm) 64
  • Rated voltage 690
  • Colour Inne
  • Height (mm) 48
  • Mounting method Inne
  • Rated Current [A] 490
  • Cross-section of the fine-wire connecting cable without cable end sleeve [mm²] 95..300
  • Cross-section of fine-strand connecting cable with end sleeve [mm²] 95..300
  • Cross-section of connecting wire, solid wire [mm²] UN
  • Cross-section of connectable multi-core cable [mm²] 95..300
  • Type of electrical connection Screw connection
  • Number of levels 1
  • Number of clamp positions per level 1
  • Insulating body material Brak
  • Flammability class of the insulating material according to UL94 NA
  • Explosion-tested version "Ex e" NO
  • Closing plate required NO
  • Internally connected steps Yes
  • Working temperature ..80
