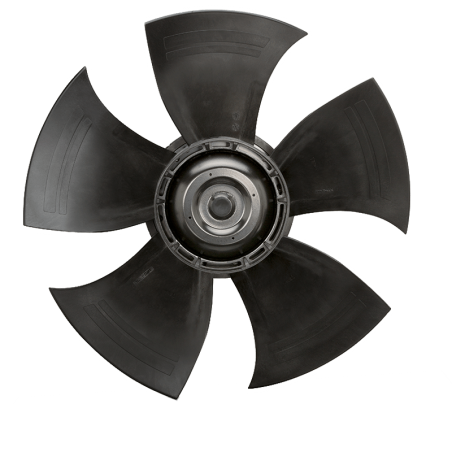

3258 J/2 H3P Wentylator osiowy
3258 J/2 H3P Wentylator osiowy

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Ebmpapst

3258 J/2 H3P Wentylator osiowy

  • 3258 J/2 H3P Wentylator osiowy 46180
  • Cable z wyprowadzeniami AWG 22, TR 64
  • Air flow direction Exhaust over the struts
  • Dimensions 92 x 92 x 38 mm
  • Housing material PBT material reinforced with glass fiber
  • Nominal voltage 48
  • Speed 7450
  • Power input 34
  • Min. ambient temperature -20
  • Max. ambient temperature 70
  • Air flow 270
  • Sound pressure level 64
  • Voltage range 36 .. 56
  • Bearing Łożysko kulkowe
  • Direction of rotation Zgodnie z ruchem wskazówek zegara, patrząc w kierunku wirnika
  • Rotor material Glass fiber reinforced PA material
  • Lifetime L10 at 40 ° C 85.000 h
  • L10 lifetime at maximum temperature 42.500 h
  • Sound power level 7.6
  • Approval VDE, CSA, UL
  • Weight 0.24 kg
