5318 /2 TDHP Kompaktowy wentylator osiowy
5318 /2 TDHP Kompaktowy wentylator osiowy

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Ebmpapst

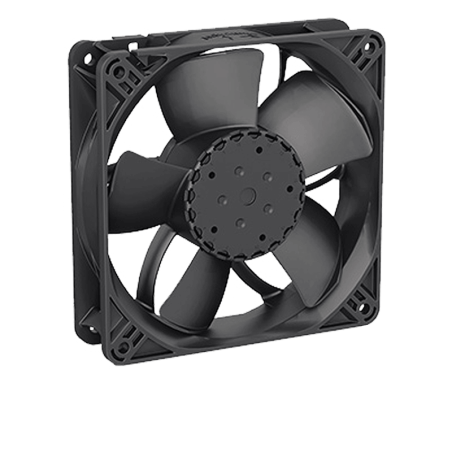

5318 /2 TDHP Kompaktowy wentylator osiowy

  • 5318 /2 TDHP Kompaktowy wentylator osiowy 47196
  • Cable z wyprowadzeniami AWG 20 i AWG 22, TR 64
  • Air flow direction Inlet over struts
  • Dimensions 140 x 140 x 51 mm
  • Housing material Die-cast aluminum
  • Nominal voltage 48
  • Speed 6000
  • Power input 42
  • Min. ambient temperature -20
  • Max. ambient temperature 70
  • Air flow 410
  • Sound pressure level 70
  • Voltage range 36 .. 72
  • Bearing Łożysko kulkowe
  • Direction of rotation Przeciwnie do ruchu wskazówek zegara, patrząc w kierunku rotora
  • Rotor material Glass fiber reinforced PA material
  • Lifetime L10 at 40 ° C 70000 h
  • L10 lifetime at maximum temperature 35000 h
  • Sound power level 7.7
  • Type of voltage DC
  • Motor protection Reverse polarity and locked rotor protection.
  • Weight 0.900 kg
