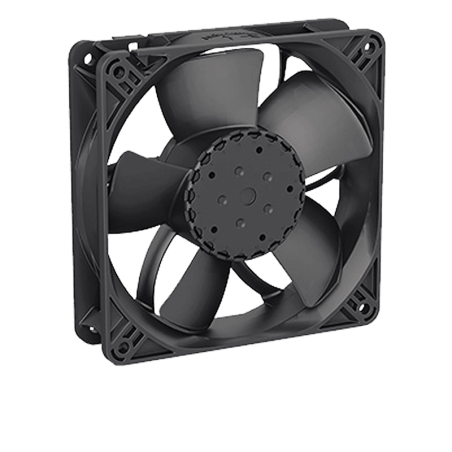

7114 NH Kompaktowy wentylator osiowy
7114 NH Kompaktowy wentylator osiowy

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Ebmpapst

7114 NH Kompaktowy wentylator osiowy

  • 7114 NH Kompaktowy wentylator osiowy 47237
  • Cable Przewody AWG 22, TR 64, pozbawione izolacji i cynowane.
  • Air flow direction Exhaust over the struts
  • Dimensions Ø 150 x 38 mm
  • Housing material Die-cast aluminum
  • Nominal voltage 24
  • Speed 3350
  • Power input 19
  • Min. ambient temperature -25
  • Max. ambient temperature 72
  • Air flow 360
  • Sound pressure level 58
  • Voltage range 12 .. 26.5
  • Bearing Łożysko kulkowe
  • Direction of rotation Przeciwnie do ruchu wskazówek zegara, patrząc w kierunku rotora
  • Rotor material Black painted steel sheet
  • Lifetime L10 at 40 ° C 75000 h
  • L10 lifetime at maximum temperature 35000 h
  • Sound power level 6.7
  • Type of voltage DC
  • Approval VDE, CSA, UL, CE
  • Motor protection Reverse polarity and locked rotor protection.
  • Locked-rotor protection elektroniczne zabezpieczenie zablokowanego wirnika
  • Weight 0.620 kg
