EMC tents

Shielded curtains, tents made according to customer specifications.

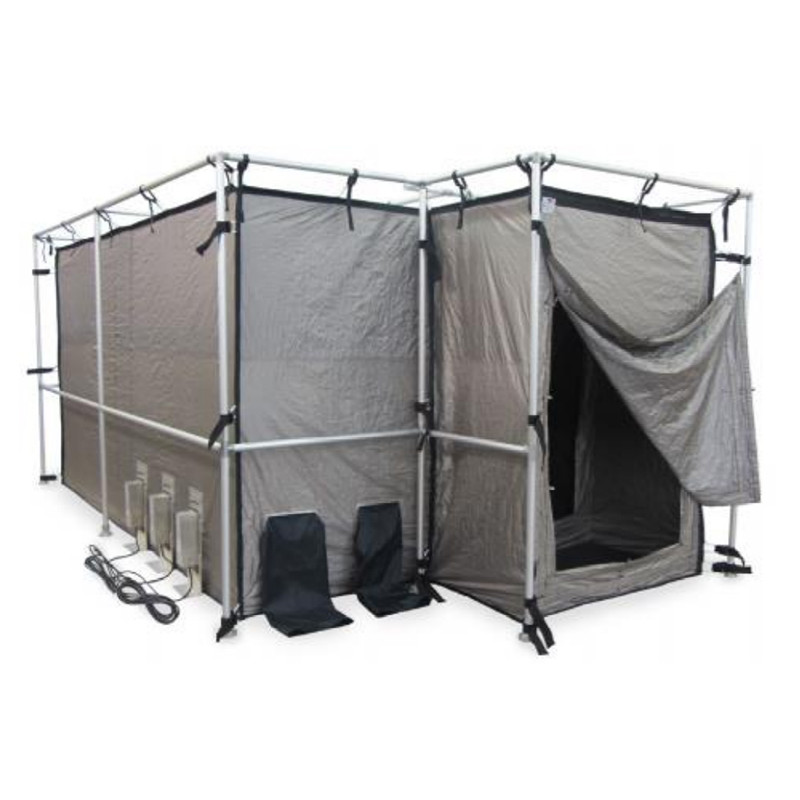

Portable, lightweight, and easy-to-assemble shielded tents, made of special metallized fabric, providing protection against electromagnetic fields.

The tent's supporting structure is made of aluminum tubes and can be customized in terms of size and accessories. The textile part is made of conductive pure nickel fabric with a protective coating that reduces flammability. The accessible part is made of conductive Velcro or magnet and zipper to ensure maximum shielding effectiveness even in opening areas.

Quality and shielding effectiveness tests:

• Vibration resistance test MIL STD 202-204, shock test MIL STD 202-205B
• Salt fog test MIL 202-101B - IEEE Standard MIL STD 285 test, in the frequency range from 30 MHz to 3 GHz.

The average shielding value is about 48 dB attenuation, with peaks of 65 dB at 200 MHz and 400 MHz.

Quality and shielding effectiveness tests

• Designed and entirely manufactured in Italy.
• Completely corrosion resistant.
• Optimized for EMI and EMC.
• Possibility to define shielding effectiveness with the client: from 45 dB to 70 dB depending on the frequency.
• Dimensions: According to Customer's wishes

Optional:

• Shielded windows;
• Entry panels for network filters and accessories;
• Honeycomb structure filters for air passage;
• Lighting.
