Manufacturer: ZIEHL

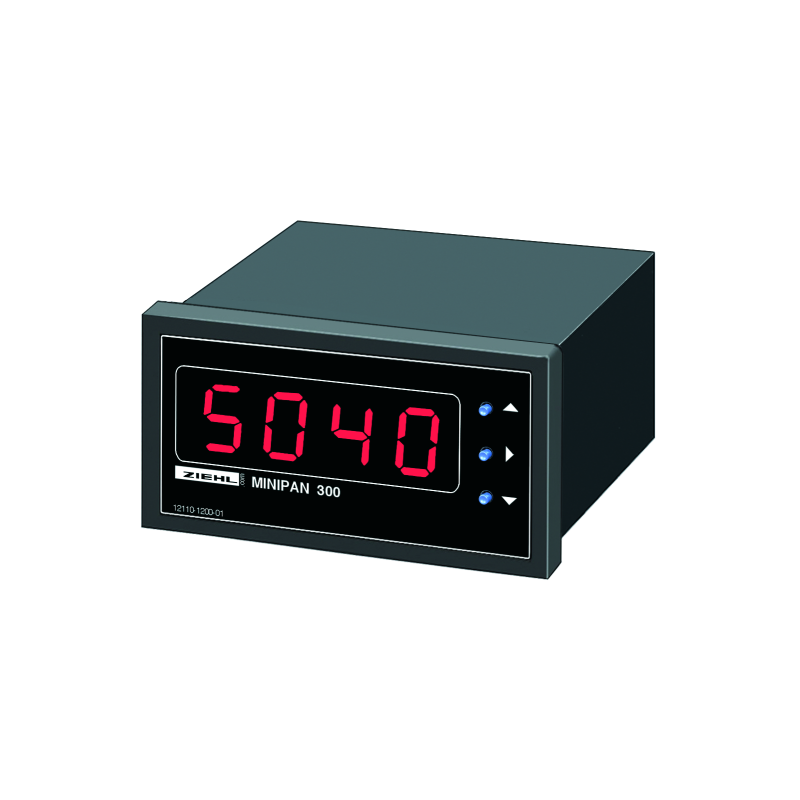

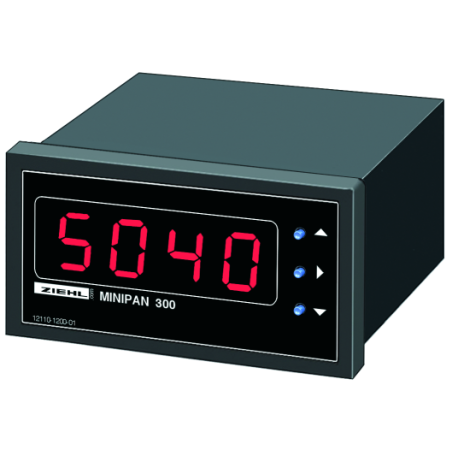

MINIPAN300-DC - Universal Digital Panel Meter - D440300

  • D440300
  • Product Type Motor IP54, electronics IP20 / depending on mounting and position
  • Supply voltage AC/DC 24 - 240 V
  • Execution Aluminum. Housing with grounding eyelet for M4 x 8 (Torx) screw. 48V version, screws included.
  • Measured value Standard signals 0/4-20 mA, 0-10 V, Voltage, Current measurement

With its 4 digit, 14 mm high display, Digital Panel meters of MINIPAN® 300- series allow the accurate display of different values ​​in the range -1999 ... +9999.

Only 3 designs cover the measuring of DC voltage and current, AC voltage and current and temperature with Pt 100- sensors (RTD).

The display can be easily programmed by the customer (e.g. input 0-10 V --> display 0-350.0 ms or AC 0-1 A ---> 0- 400.0 A With the built-in universal power supply AC/DC 24-240 V it is especially versatile.
