ProfilPlus 50

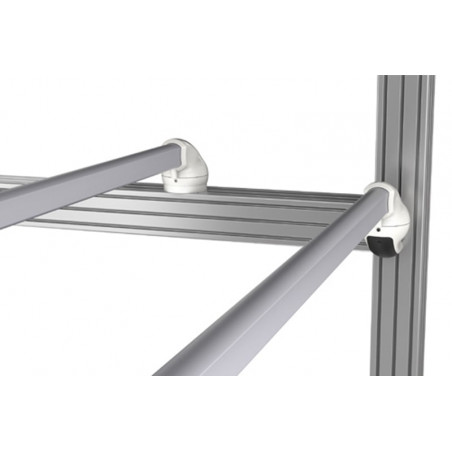

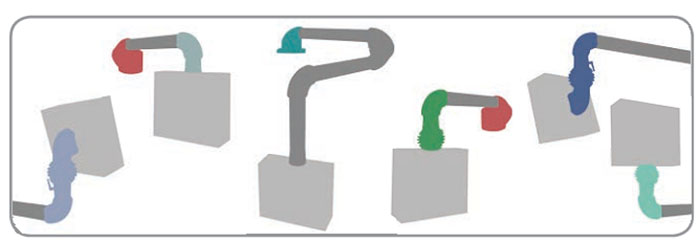

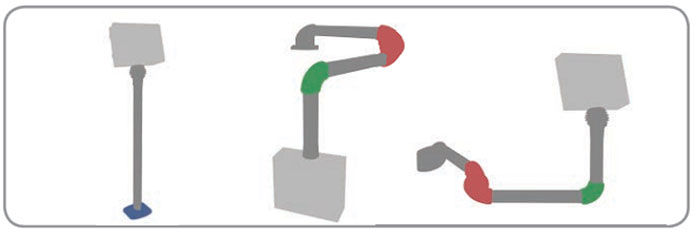

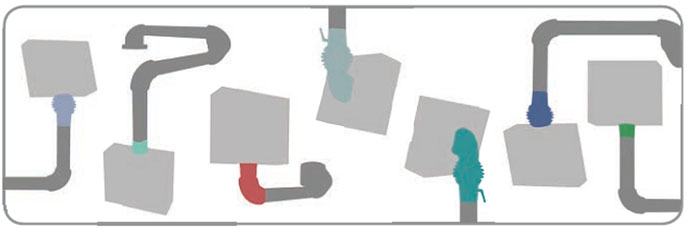

Thanks to its system diversity, profiPLUS offers a whole host of combination options for individual suspension arm configurations. The example variants presented here serve as orientation aids and demonstrate the diversity of the system.

All couplings available as standard with a fitted support profile.	Set screw system for setting any arbitrary pivot range.
Integrated earth bonding for protecting both man and machine.		Optional adapters for signal lights, e.g. from Werma (lights not included).
Integrated cable protection included as standard.		Reducer adapters from profiPLUS 70 to 50 for connecting smaller enclosure couplings.

System components

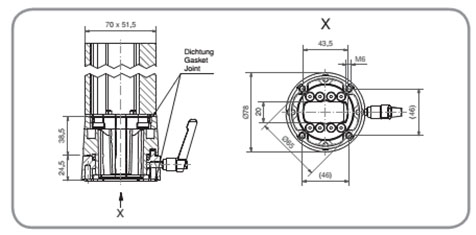

coupling

Upright

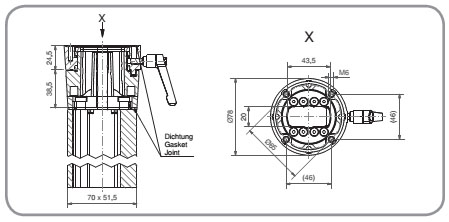

coupling

Hanging

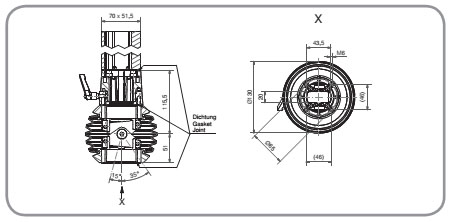

Coupling N

Upright

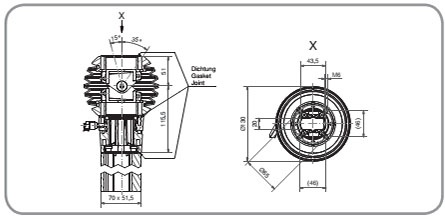

Coupling N

Hanging

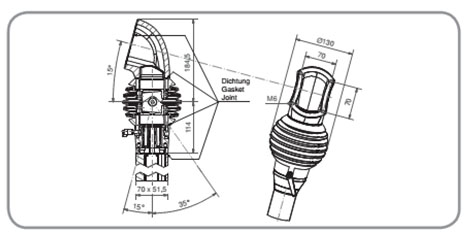

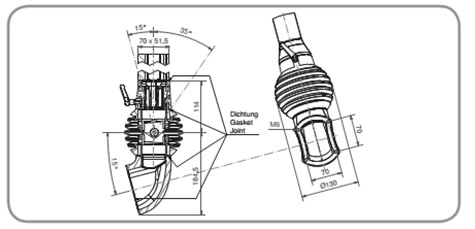

Desk coupling N

Upright

Desk coupling N

Hanging

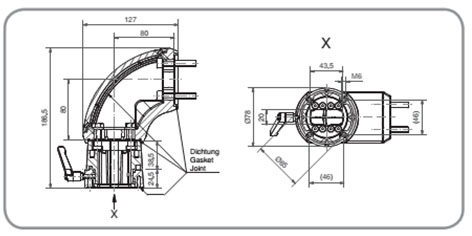

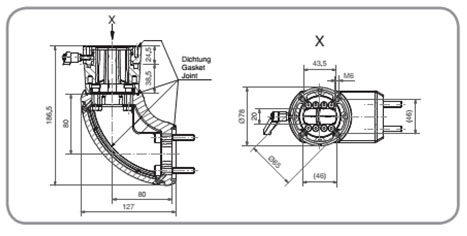

Elbow coupling

Upright

Elbow coupling

Hanging

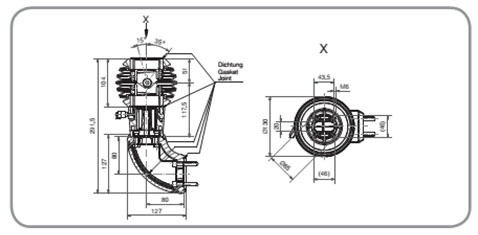

Elbow coupling N

Upright

Elbow coupling N

Hanging

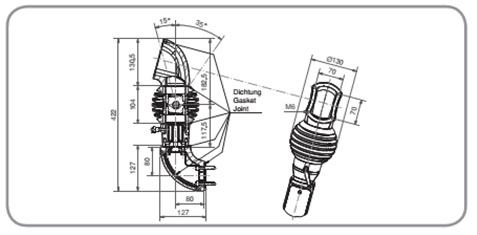

Elbow desk coupling N

Upright

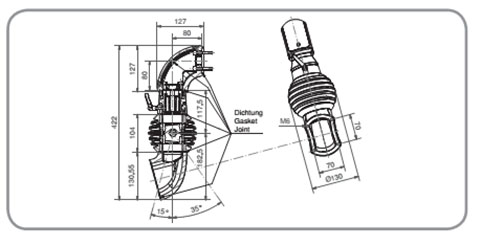

Elbow desk coupling N

Hanging

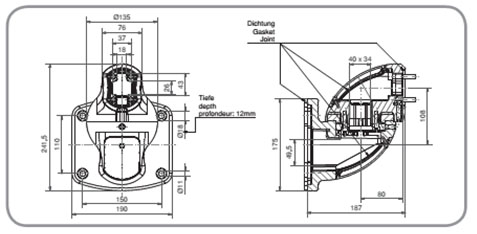

Wall joint

Socket joint

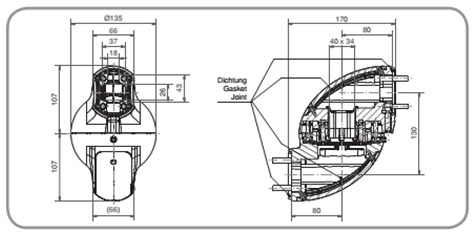

Intermediate joint

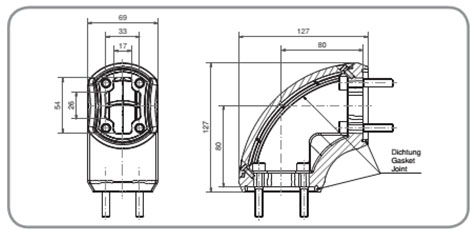

Elbow

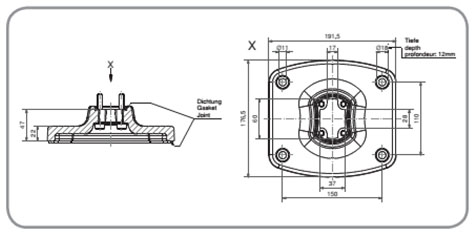

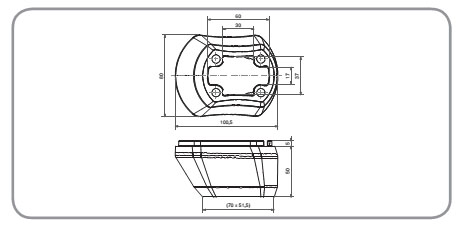

Base

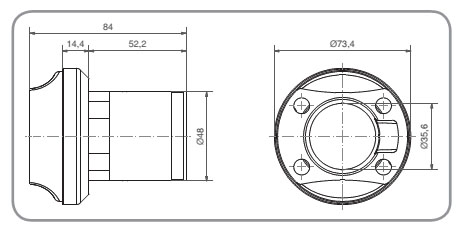

Beckhoff adapter

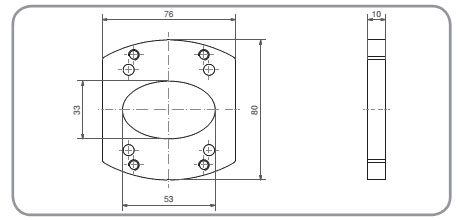

Siemens adapter

70/50 adapter

Signal light adapterJoint/elbow

Rys.	System components	Mat. no.	Hanging	Upright	pivoting	horizontally adjusting	tilting	Support profile length* mm	Weight / g	System length**** mm
1	coupling **	142 240 250		+	+			250	1450	64
		142 240 500		+	+			500	2350	64
		142 240 750		+	+			750	3250	64
		142 241 000		+	+			1000	4150	64
2		142 250 250	+		+			250	1450	64
		142 250 500	+		+			500	2350	64
		142 250 750	+		+			750	3250	64
		142 251 000	+		+			1000	4150	64
3	Coupling N **	142 260 250		+	+		+	250	2520	168
		142 260 500		+	+		+	500	3420	168
		142 260 750		+	+		+	750	4320	168
		142 261 000		+	+		+	1000	5220	168
4		142 270 250	+		+		+	250	2520	168
		142 270 500	+		+		+	500	3520	168
		142 270 750	+		+		+	750	4320	168
		142 271 000	+		+		+	1000	5220	168
5	Desk coupling N **	142 280 250		+	+		+	250	3390	V245/H47
		142 280 500		+	+		+	500	4290	V245/H47
		142 280 750		+	+		+	750	5190	V245/H47
		142 281 000		+	+		+	1000	6090	V245/H47
6		142 290 250	+		+		+	250	3390	V245/H47
		142 290 500	+		+		+	500	4290	V245/H47
		142 290 750	+		+		+	750	5190	V245/H47
		142 291 000	+		+		+	1000	6090	V245/H47
7	Elbow coupling	142 034 000		+	+				1260	V144/H80
8		142 035 000	+		+				1260	V144/H80
9	Elbow coupling N	142 036 000		+	+		+		2370	V248/H80
10		142 037 000	+		+		+		2370	V248/H80
11	Elbow desk coupling N	142 038 000		+	+		+		3240	V325/H127
12		142 039 000	+		+		+		3240	V325/H127
13	Wall joint	142 010 000		+	+	+			5350	185
14	Socket joint	142 005 000		+	+	+			4450	80
15	Intermediate joint	142 015 000		+	+				4050	80
17	Base ***	142 030 000	+	+					1350	50
T	Support profile 0,25m	142 000 250							900
T	Support profile 0,50m	142 000 500							1800
T	Support profile 0.75m	142 000 750							2700
T	Support profile 1,00m	142 001 000							3600
T	Support profile 1,50m	142 001 500							5400
18	Beckhoff adapter Ø48	142 000 000	+	+					200	27
19	Siemens adapter	142 024 000	+	+					110	11
20	70/50 adapter	143 000 001	+	+					370	55
21	Adapter signal light – joint	142 020 501							150
21	Adapter signal light – elbow	142 020 502							180

+ Functional features
* Special lengths available on request
** Delivery with support profile fitted
*** Horizontal and vertical installation possible
**** The cited values are added to the support profile length. This provides the effective system length. (Details are vertical (V) and horizontal (H) for an upright coupling rotating axis respectively

Technical data

System components:
Die cast aluminium, RAL 7035 light grey

Cover:
Plastic (POM), RAL 7016 anthracite grey

Bellows:
PVC-P, (-30^oC do +70^oC)
RAL 7016 szary antracyt

Support profile:
Extruded aluminium profile, silver anodised Fastening thread preformed

Gasket:
Chloroprene (CR), (-30^oC do +90^oC)

Ingress protection:
IP54 / EN 60529

Integrated earth bonding:
DIN VDE 0113 / EN 60204-1 / IEC 204-1

Patented:
Fast horizontal alignment of the complete system structure with a single set screw

OPTIONAL:

Surface:
Special colours for system elements and support profiles

Matching ROLEC control enclosures:
commandCASE , topVISION, multiVISION, aluFACE
