Manufacturer: ZIEHL

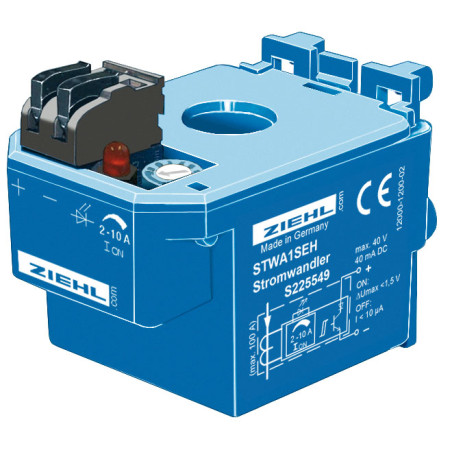

STWA1SEH - Electronic Current Transducer - S225549

  • S225549
  • Product Type IP00 motor, IP20 electronics
  • Execution Die-cast aluminum
  • Additional information PA plastic, black painted sheet metal
  • Output function Digital outputs
  • Measured value Pressed semi-finished product made of steel sheet, sprayed with PP plastic

The STWA1SEH is used where current flow has to be detected, e.g. to report exceeding of a limit, to switch off a machine or just report the current flow.

The STWA1SEH has an integrated electronics with transistor-output. The limit is adjustable 2 - 10 A with a potentiometer. A LED displays the state.

  • adjustable switching point 2-10 A
  • built-in LED displays state of the output
  • isolated transistor-output max. DC 40 V / 40 mA
  • output van be directly connected to a digital input of a PLC
  • integrated diode for reverse voltage protection
  • electrival connection via screwless pluggable terminals
  • 2-wire, no supply voltage required
  • DIN-rail-mount or with screws
  • plug-in current transformer (Ø 11 mm)
  • max. overload 100 A continuously, 300 A max. 10 pp.
