Manufacturer: Ebmpapst

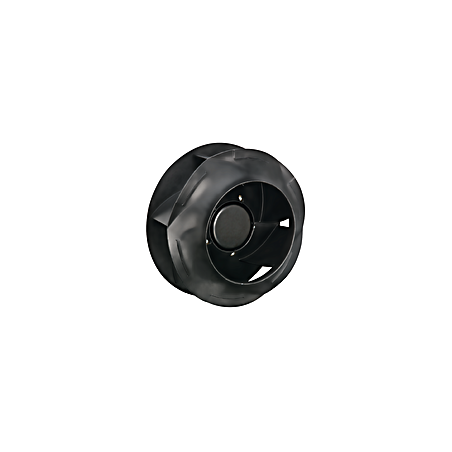

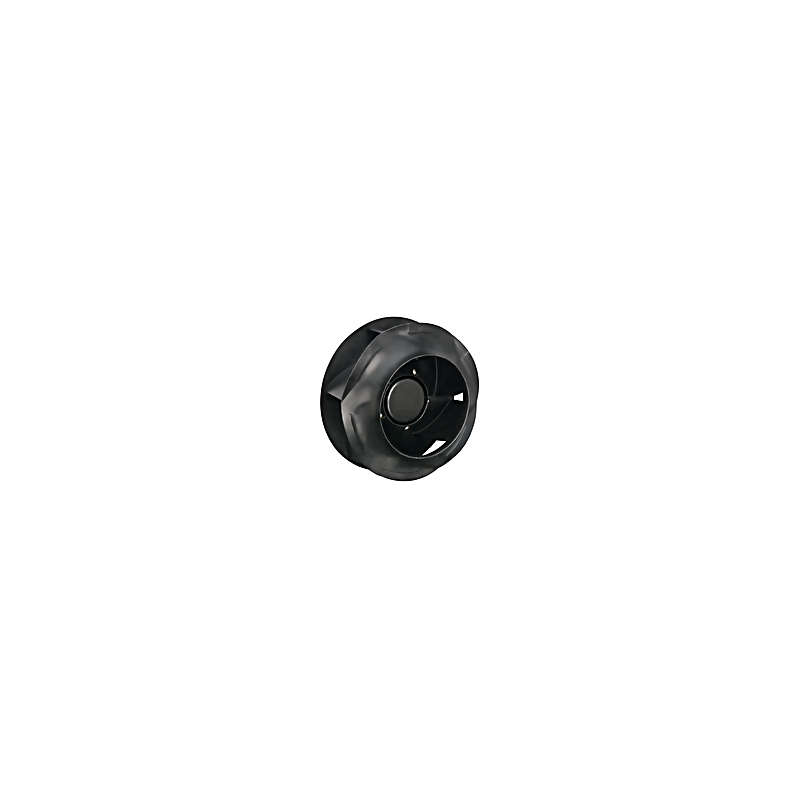

G2E133-RA03-01 AC radial fan 230/230V 24/26W

  • G2E133RA0301
  • Housing material Plastik PP
  • Protection rating IP42
  • Frequency 50 / 60
  • Input power 24 / 26
  • Phase 1~ / 1~
  • Nominal voltage 230 / 230
  • Speed 2700 / 3150
  • Current draw 0.11 / 0.14
  • Motor capacitor 1.5 / 1.5 µF
  • Size 133 mm
  • Fan type AC single inlet centrifugal blower with volute housing
  • Rotor material PP plastic
  • Type of voltage AC / AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 42
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H0+
  • Motor bearing Ball bearing
  • Rotor surface Painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Valid for approval / standard CE / CE
  • Min. back pressure 0 / 0
  • Weight 1 kg
  • Compliance with standards EN 60335-1; EN 60034-1; EN 60204-1 / CE
