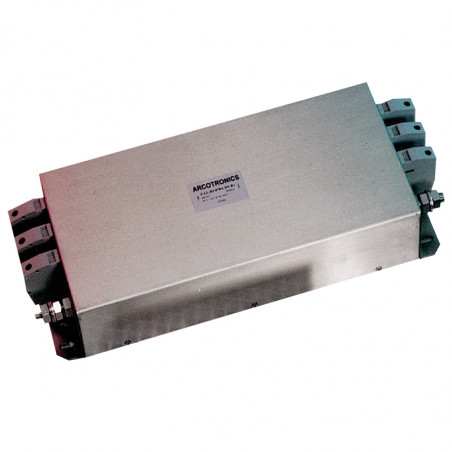

Three phase filters with neutral F.TR series
Three phase filters with neutral F.TR series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Arcotronics

Three phase filters with neutral F.TR series

Electrical data

Nominal voltage (UR): 440V; 50/60HZ
Nominal current (IN): at ambient temperature 40°C
Leakage current (IL): maximum value at UN/√3, 50Hz
Voltage test (2s): line - ground 2500 VDC
line - zero cable 1700 VDC
Climatic categories: HPF (25/85/21) for 16A, 19A, 50A, 100A i F.TR.25A.06
HPF (25/100/21) for others
Temperature ranges: -25°C - 85°C dla 16A, 19A, 50A, 100A i F.TR.25A.06
-25°C - 100°C for others

Type IN
[A]		 L1
[mH]		 I2
[mH]		 Cx
[µF]		 Cy1
[pF]		 Cy2
[pF]		 IL
[mA]		 R
[MΩ]		 Scheme number Casing number
F.TR.13A.07.D2.G-.01 13 4 X 0,08 4 x 1 3 x 0,1 3 x 1,5 4 x4,7 1,98 3 x 0,33 C B
F.TR.15A.05.D0.G- 15   3 x 0,45 3 x 0,33 3 x 0,47 15 1,6 3 x 0,33 A A
F.TR.16A.07.D2.GI.00 16 4 X 0,1 4 x 1 3 x 0,1 3 x 1,5 4 x4,7 1,98 3 x 0,33 C D
F.TR.16A.10D0.GB 16   3 x 1 3 x 1,15 3 x 0,22 4 x 22 9,3 3 x 0,33 D A
F.TR.19A.10.D0.GI 19   3 x 1 3 x 1,15 3 x 0,22 4 x 22 9,3 3 x 0,33 D A
F.TR.25A.02.D0.G- 25   4 x 0,45 3 x 0,33 3 x 0,47 15 1,6 3 x 0,33 B A
F.TR.25A.06.D0.G- 25   4 x 0,35 3 x 1,15 3 x 0,01 4 x 22 9,3 3 x 0,33 D A
F.TR.25A.06.D0.G-.02 25   3 x 0,1   3 x 1 100 10,5 3 x 0,33 E A
F.TR.50A.06.D0.GD.03 50   3 x 0,1   3 x 1 100 10,5 3 x 0,33 E A
F.TR.50A.06.D0.GI.02 50   3 x 0,1   3 x 1 100 10,5 3 x 0,33 E A
F.TR.100A.6.D0.GI.02 100   3 x 0,1   3 x 1 100 10,5 3 x 0,33 E C

Caution
D - cables, I - M4 screws

Scheme A
FILTRY TRÓJFAZOWE Z PRZEWODEM ZEROWYM SERIA F.TR... Scheme A		 Scheme B
FILTRY TRÓJFAZOWE Z PRZEWODEM ZEROWYM SERIA F.TR... Scheme B
Scheme C
FILTRY TRÓJFAZOWE Z PRZEWODEM ZEROWYM SERIA F.TR... Scheme C		 Scheme D
FILTRY TRÓJFAZOWE Z PRZEWODEM ZEROWYM SERIA F.TR... Scheme D
Scheme E
FILTRY TRÓJFAZOWE Z PRZEWODEM ZEROWYM SERIA F.TR... Scheme E

Dimensions [mm] and terminals

FILTRY TRÓJFAZOWE Z PRZEWODEM ZEROWYM SERIA F.TR... wymiary

Characteristics - damping

................... - symmetric (line-line)
___________ - asymmetric (line-ground)
