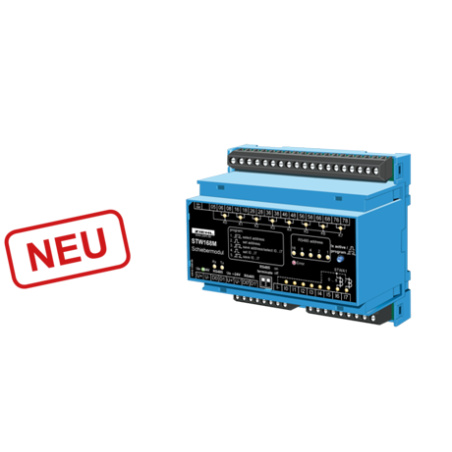

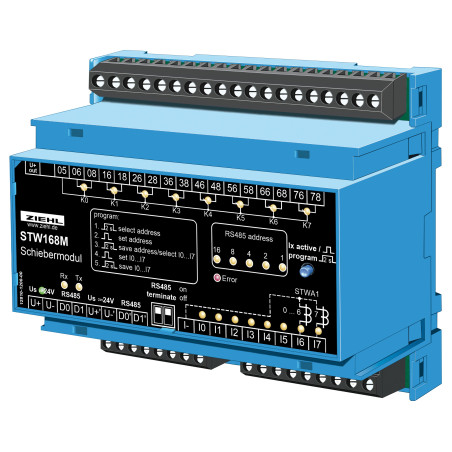

STW168M - Slider Module - S225544

Bus module for controlling sliders in extraction systems

STW168M and STW161M shutter modules control up to 8 shutters in extraction systems in conjunction with an STW164IP control unit. Up to 4 STW168M units can be combined with one STW164IP control unit. They are simply mounted next to the STW164IP in the control cabinet. Alternatively, they can be placed near the slide valves. In this case, the module only needs to be connected with one bus cable. The long supply lines to the sliders from the control cabinet are no longer required. At the same time, it is possible to use single modules STW161M in the same system (sliders on STW161M only DC 24 V).

Function and properties

• Module for connecting up to 8 sliders

• Outputs potential-free changeover contacts for 24 or 230 V

• Inputs for detecting the operating status of the machines (on/off), response threshold 0.5...9.9 A adjustable on the STW164IP

• Control via STW164IP (max. 4 x STW168M can be connected)

• Bus address 0...31 adjustable

• Control voltage DC 24 V (via 4-pole bus cable)

• LEDs for input and output statuses

• Connections via screw terminals

• Mounting Distribution board installation on top-hat rail EN60715

• Dimensions W x H x D: (without screw connections) 94 x 130 x 57 mm

• Accessories: ER6 mounting frame for panel mounting
