Manufacturer: Ebmpapst

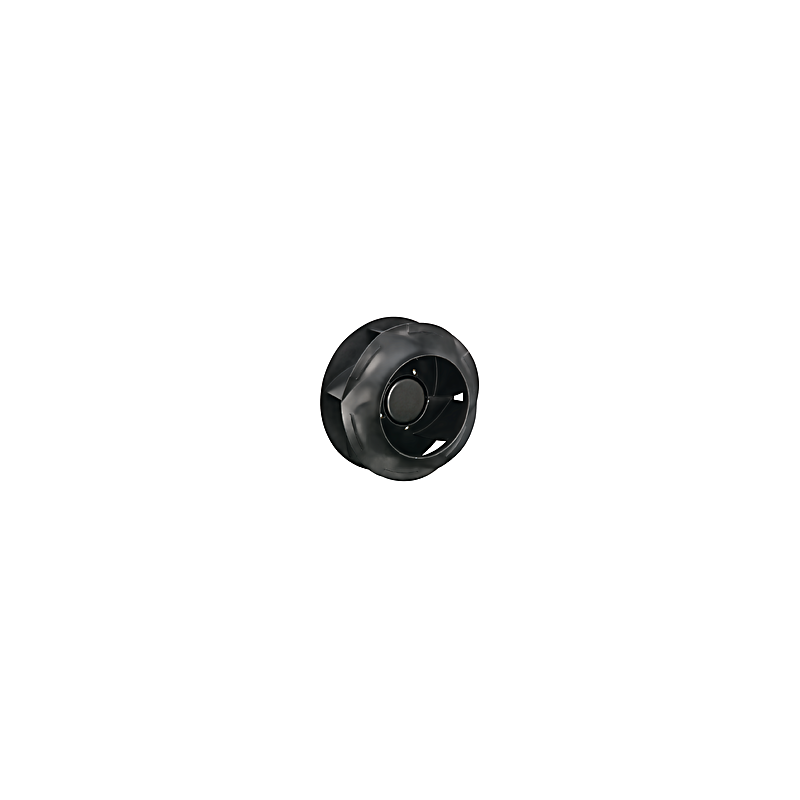

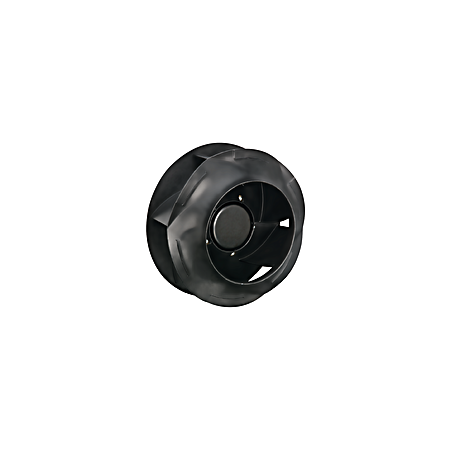

G2E160-RA63-01 AC radial fan 230/230V 27/35W

  • G2E160RA6301
  • Housing material Plastik PP
  • Protection rating IP44 / depending on mounting and position
  • Frequency
  • Input power 27 / 35
  • Phase 1~ / 1~
  • Nominal voltage 230 / 230
  • Speed 2550 / 2700
  • Current draw 0.12 / 0.16
  • Motor capacitor 1 / 1 µF
  • Certificate EAC
  • Size 160 mm
  • Fan type AC single inlet centrifugal blower with volute housing
  • Rotor material PP plastic
  • Type of voltage AC / AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 52
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H0+
  • Motor bearing Ball bearing
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Valid for approval / standard CE / CE
  • Min. back pressure 0 / 0
  • Weight 1,4 kg
  • Compliance with standards EN 60335-1 / CE
