Manufacturer: Ebmpapst

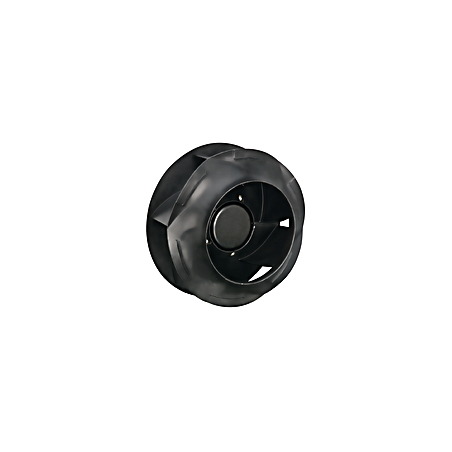

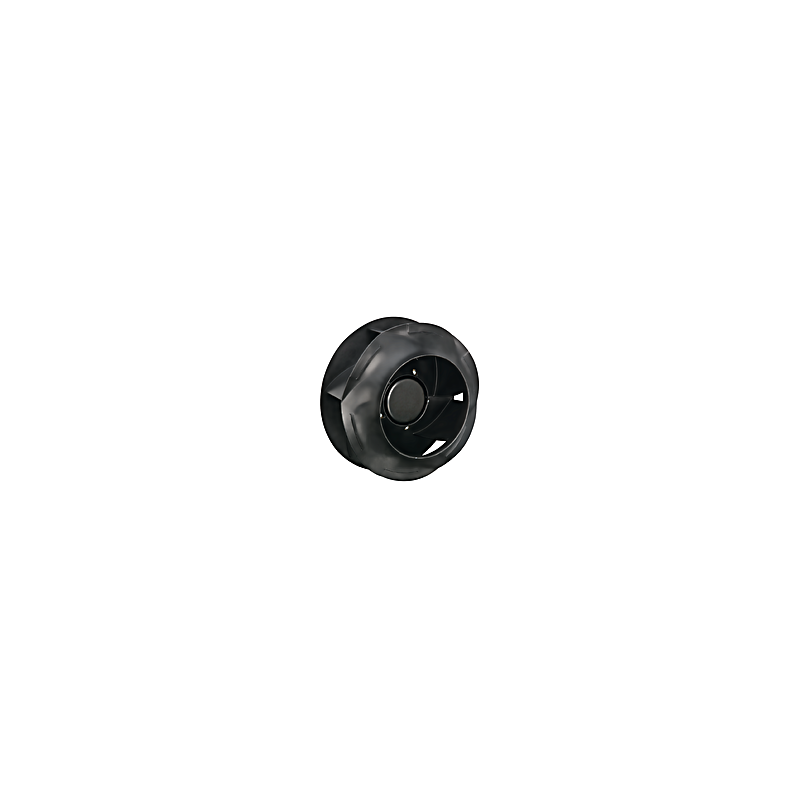

G3G160-RO31-04 EC radial fan 230V 85W

  • G3G160RO3104
  • Housing material Plastik PP
  • Protection rating IP44
  • Frequency 50/60
  • Input power 85
  • Phase 1~
  • Nominal voltage 230
  • Speed 4300
  • Current draw 0.75
  • Max. ambient temperature 45
  • Certificate CCC
  • Size 160 mm
  • Fan type EC single inlet centrifugal blower with spiral housing
  • Voltage range 200 ... 240
  • Rotor material PP plastic
  • Type of voltage AC
  • Motor protection Electronic engine protection
  • Motor size 55
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H0+
  • Motor bearing Ball bearing / (sealed)
  • Rotor surface Thick-layer passivated
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 1,48 kg
  • Compliance with standards EN 60034-1; EN 60204-1; EN 60335-1 / UKCA / CE
