Manufacturer: Ebmpapst

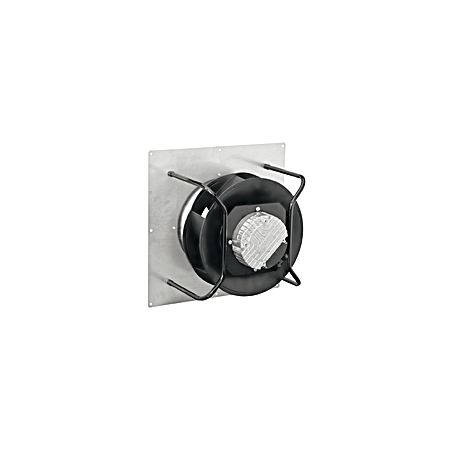

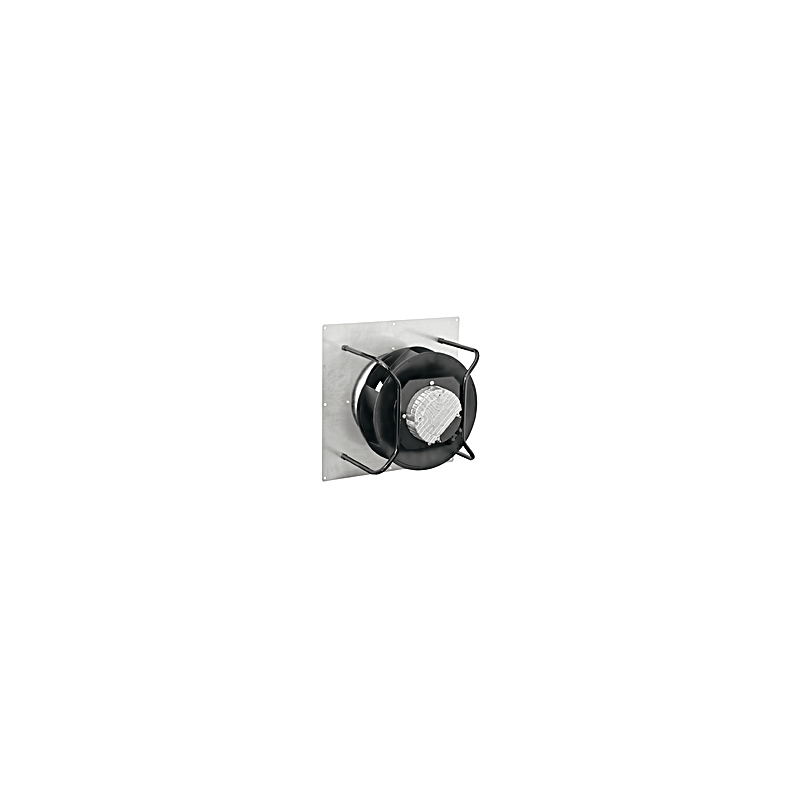

K3G280-RU26-81 EC radial fan 26V 252W

  • K3G280RU2681
  • Protection rating IP24 HP engine, IP6K9K electronics (mating connector installed)
  • Input power 252
  • Nominal voltage 26
  • Speed 2350
  • Current draw 10.5
  • Min. ambient temperature -40
  • Max. ambient temperature 70
  • Certificate EAC
  • Size 280 mm
  • Fan type EC single-inlet centrifugal fan with mounting panel
  • Voltage range 16 ... 32
  • Rotor material PA plastic, black painted sheet metal
  • Type of voltage DC
  • Motor size 84
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H3
  • Motor bearing Ball bearing
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 8,78 kg
  • Compliance with standards EN 15085-1, CPC3; EN 45545-2, HL3; EN 50155; EN 61373, Cat. 1B
