Manufacturer: Ebmpapst

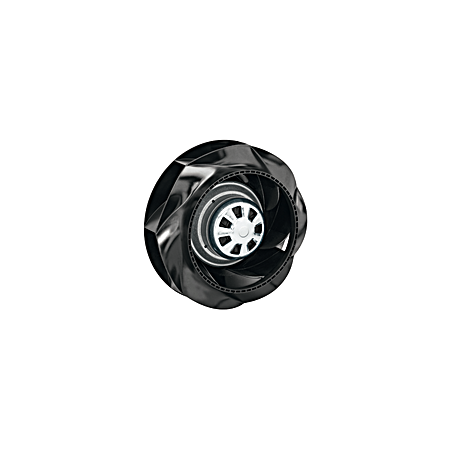

R3G220-RY90-P1 EC radial fan 110V 265W

  • R3G220RY90P1
  • Protection rating Customer specific / IP 6K9K
  • Frequency DC
  • Input power 265
  • Nominal voltage 110
  • Speed 3850
  • Current draw 2.5
  • Max. ambient temperature 60
  • Certificate EAC
  • Size 220 mm
  • Fan type EC single-inlet centrifugal fan
  • Voltage range 77 ... 138
  • Rotor material PA plastic, black painted sheet metal
  • Type of voltage DC
  • Motor protection Electronic engine protection
  • Motor size 74
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H3
  • Motor bearing Ball bearing / (sealed)
  • Electronics housing material Die-cast aluminum, painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 2,12 kg
  • Compliance with standards EN 45545-2, HL3; EN 50155; EN 61373, Cat. 1B
