Manufacturer: Ebmpapst

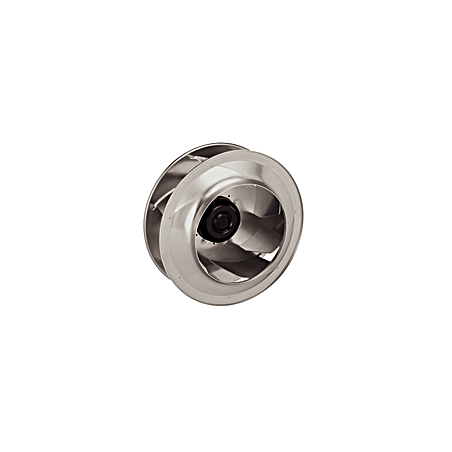

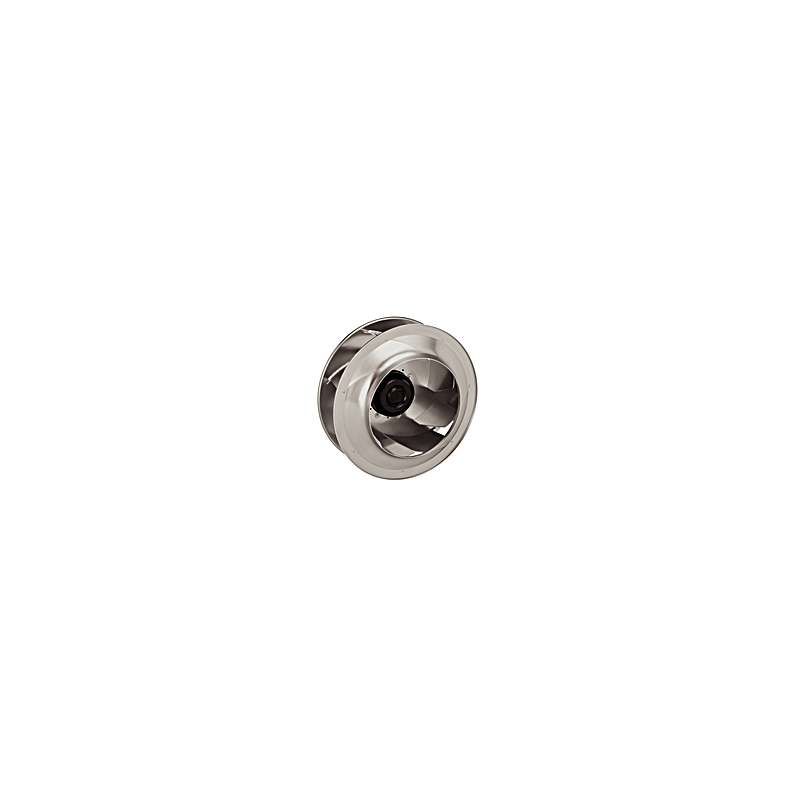

R3G310-FD02-01 EC radial fan 230V 170W

  • R3G310FD0201
  • Protection rating IP54
  • Frequency 50/60
  • Input power 170
  • Phase 1~
  • Nominal voltage 230
  • Speed 1650
  • Current draw 1.5
  • Max. ambient temperature 60
  • Size 310 mm
  • Fan type EC single-inlet centrifugal fan
  • Voltage range 200 ... 240
  • Rotor material PP plastic
  • Type of voltage AC
  • Motor protection Electronic engine protection
  • Motor size 74
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing
  • Rotor surface Galvanized
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 2,96 kg
  • Compliance with standards EN 60335-1 / CE
