Manufacturer: Ebmpapst

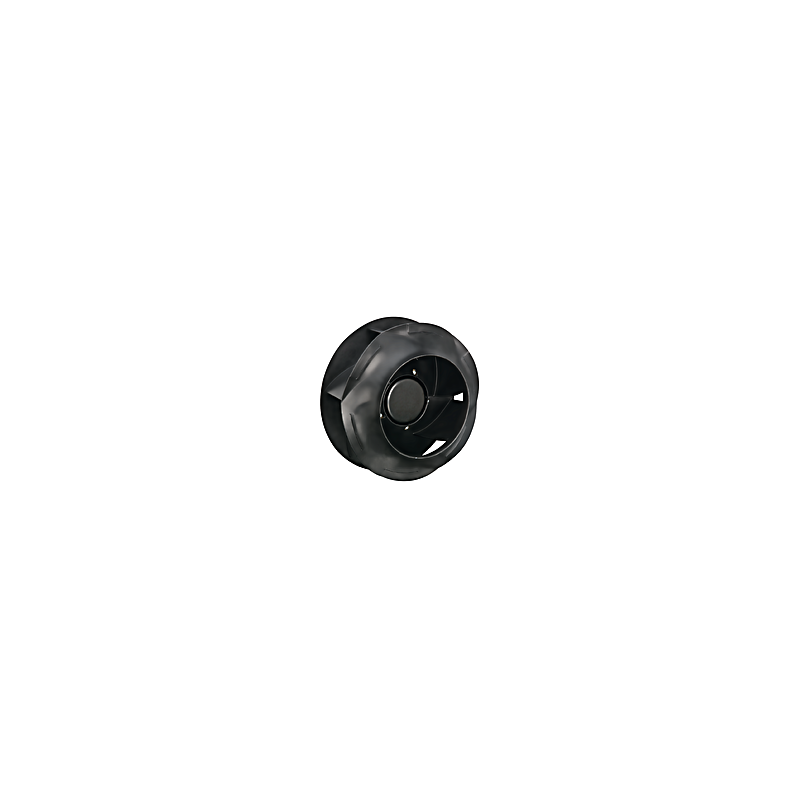

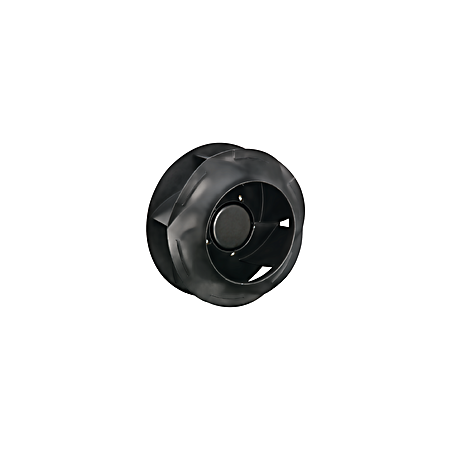

R3G310-PG93-21 EC radial fan 230V 1500W

  • R3G310PG9321
  • Protection rating IP54
  • Frequency 50/60
  • Input power 1500
  • Phase 1~
  • Nominal voltage 230
  • Speed 3200
  • Current draw 6.6
  • Max. ambient temperature 50
  • Certificate UL 1004-7 + 60730-1 / EAC / CSA C22.2 No. 77 + CAN/CSA-E60730-1
  • Size 310 mm
  • Fan type EC single-inlet centrifugal fan
  • Voltage range 200 ... 277
  • Rotor material Aluminum sheet
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 112
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 10,88 kg
  • Compliance with standards EN 61800-5-1 / CE
