Manufacturer: Ebmpapst

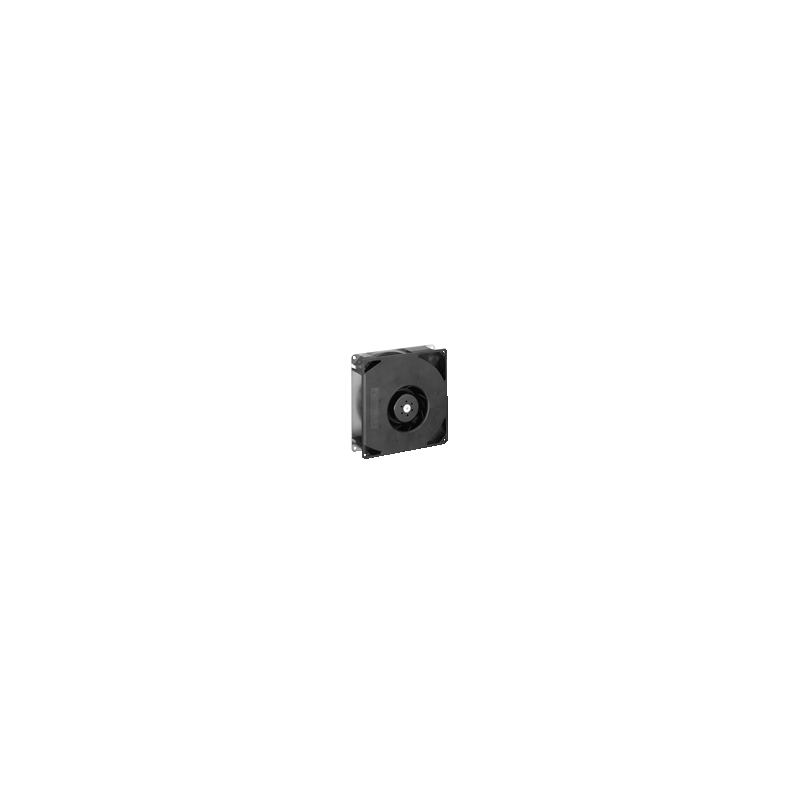

RG 160-28/14 NTDH DC radial fan 24V 101W

  • RG1602814NTDH
  • Air flow direction Axial inlet, radial outlet discharge.
  • Dimensions 220 x 220 x 56 mm
  • Housing material Spiral housing made of glass fibre reinforced plastic, housing base made of sheet steel.
  • Input power 101
  • Nominal voltage 24
  • Speed 5000
  • Min. ambient temperature -20
  • Max. ambient temperature 60
  • Air flow 370
  • Fan type DC single inlet centrifugal fan with mounting panel
  • Voltage range 16 ... 28
  • Rotor material Glass fiber reinforced plastic
  • Type of voltage DC
  • Weight 1,4 kg
