Manufacturer: Ebmpapst

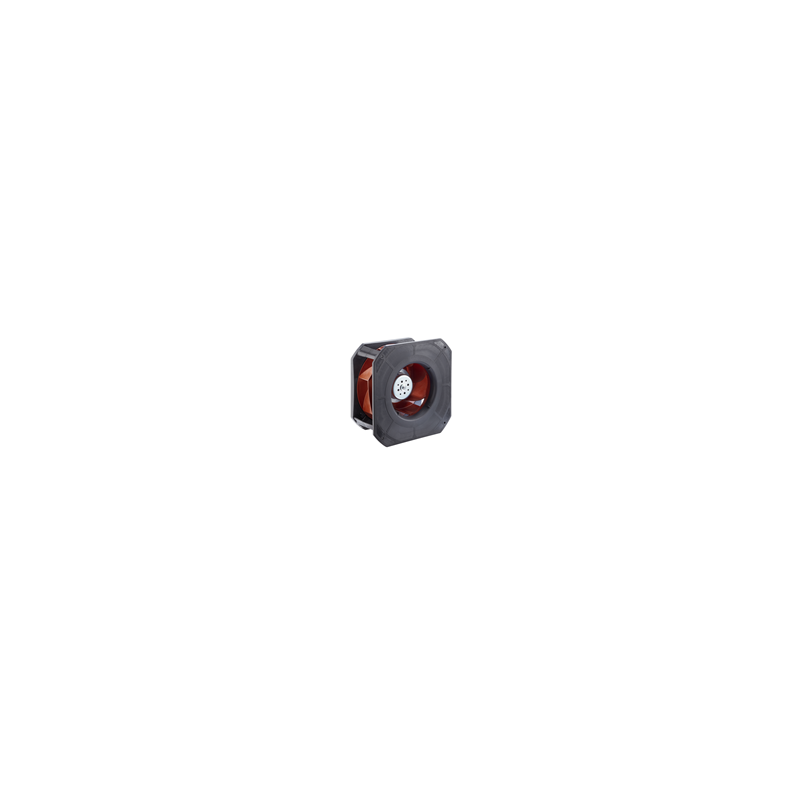

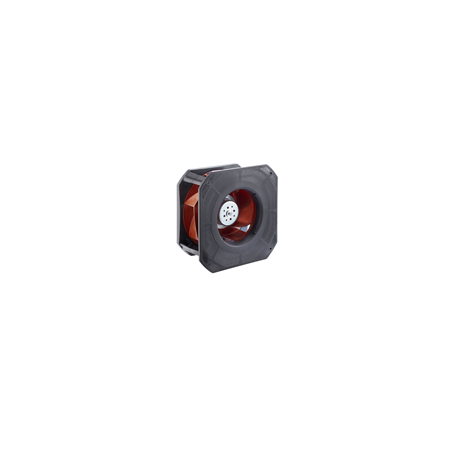

RG 225-55/14/2TDMLO DC radial fan 24V 80W

  • RG22555142TDMLO
  • Air flow direction Axial inlet, radial outlet
  • Dimensions 270 x 270 x 119 mm
  • Housing material Housing made of glass fiber reinforced plastic
  • Input power 80
  • Nominal voltage 24
  • Speed 2500
  • Min. ambient temperature -20
  • Max. ambient temperature 65
  • Air flow 1090
  • Fan type DC single inlet centrifugal fan with mounting panel
  • Voltage range 16 ... 36
  • Rotor material Glass fiber reinforced plastic
  • Type of voltage DC
  • Weight 1,75 kg
