Manufacturer: Ebmpapst

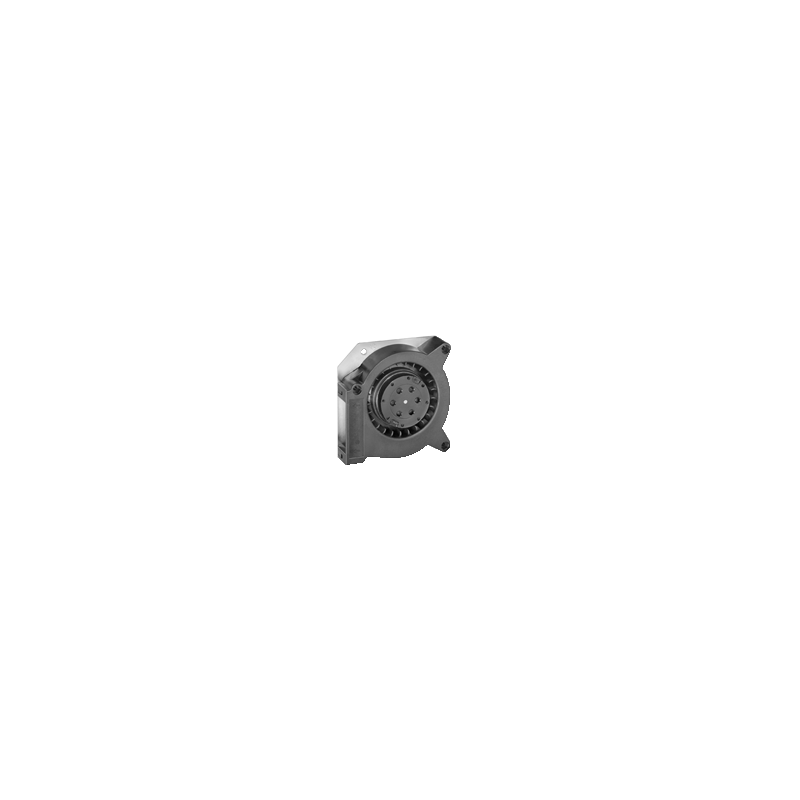

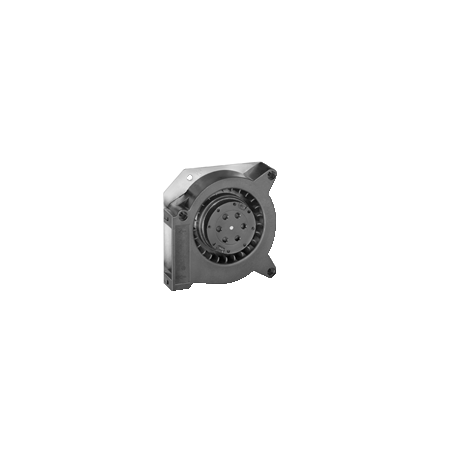

RL 90-18/00 AC radial fan 115V 19.5W

  • RL901800
  • Air flow direction radial, discharge through the window in the housing
  • Dimensions 121 x 121 x 37 mm
  • Housing material Spiral housing made of PBT reinforced with glass fiber, housing base made of sheet steel
  • Frequency 60
  • Input power 19.5
  • Phase 1~
  • Nominal voltage 115
  • Speed 2550
  • Min. ambient temperature -10
  • Max. ambient temperature 60
  • Air flow 42
  • Fan type AC single inlet radial blower
  • Rotor material Glass fiber reinforced PA material
  • Type of voltage AC
  • Weight 0,68 kg
