Alder 19905216
Alder 19905216

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Sammode

Alder 19905216

  • 19905216
  • Diameter
  • Power supply
  • Luminous Flux

  • Cable gland
  • ATEX

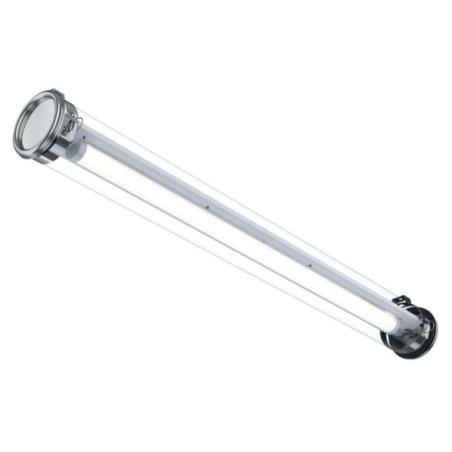

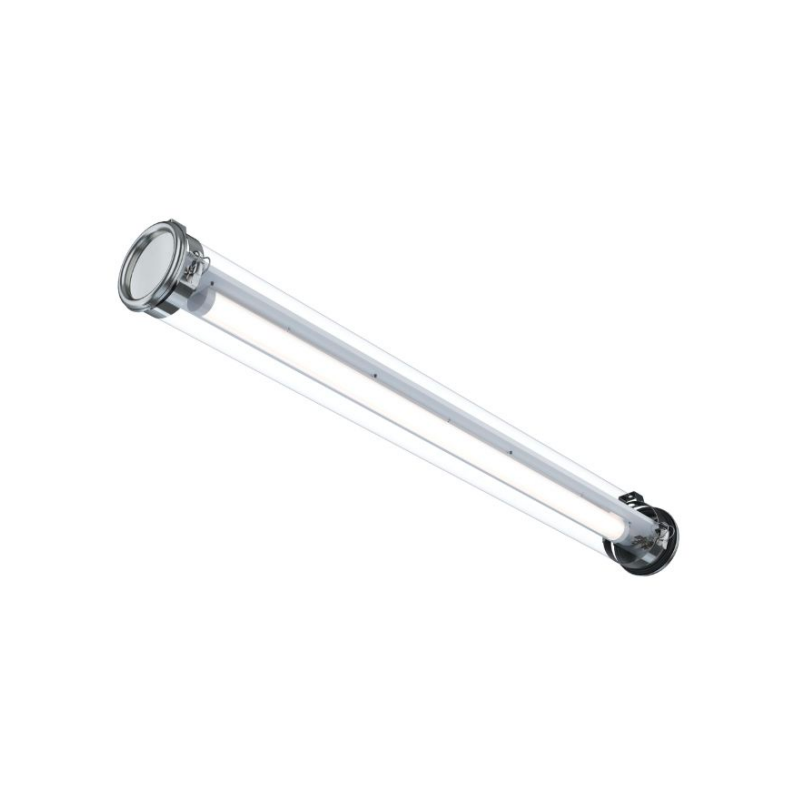

ø133 tube for industrial use in ATEX Zone 1.

The ALDER luminaire is covered by an 8-year warranty for intensive use and is suitable for the most aggressive substances thanks to its T6 classification. This model was designed to make your life easier. It is extremely light and easy to install thanks to a sliding gear tray, and it features an impact-resistant composite diffuser that is resistant to chemicals and UV rays. You don't have to choose between safety and comfort—Sammode offers it all in one, with the ALDER model.

Options

Cable input
Connector type Cable diameter range Code
1 gland Ø8–13 mm (polyamide) 113
Ø10–15 mm (polyamide) 116
Ø6–14 mm (nickel-plated brass) 113LN
2 glands (including one plugged) Ø8–13 mm (polyamide) 213
Ø10–15 mm (polyamide) 216
Ø6–14 mm (nickel-plated brass) 213LN
Mounting Brackets
Bracket Type Code
Reinforced Mounting Brackets BRS
Reinforced Brackets with Screw HSHC BRV
Color temperature
Color temperature Code
4000K 840
5700K 857
Materials
Element Code
Polycarbonate casing PO
Co-extruded PC/PMMA housing with high chemical resistance POME
304L stainless steel end caps and clamps -
316L stainless steel end caps and clamps MR

Specification

Technical features
Parameter Description
Light Source High-efficiency, replaceable LED module (CRI>80, 3 SDCM)
70,000 h L80/B50 at max. operating temperature
Optics Special optics with satin diffuser finish
Thermal Management Aluminum Heatsink
Power Supply (Control Gear) Highly reliable DC power supply, mechanically and thermally reinforced
Compatible with TN, TT, and IT systems without restrictions
Compatible with central power supplies
Supply Voltage 198–264 V, 0/50/60 Hz
Electrical protection class Class I
Operating temperature range –20°C to +35°C
Easy installation and maintenance
Element Description
Connection With ATEX polyamide cable gland for Ø8–13 mm cable
Version with 1 gland: clamps for 3 x 2.5 mm mm²
Version with 2 glands: terminal for 5 x 2.5 mm², double row, detachable
Mounting Mounting with 2 steel clamps with adjustable spacing and 360° rotation
LED module maintenance Easily replaceable LED modules and power supply
Can be safely opened outside the explosion-hazardous area
Maintenance by removing the cover and ejecting the board with components (Slide© system)
Materials
Element Description
Housing Special polycarbonate housing, protected against UV, solvents, hydrocarbons, and cleaning agents thanks to PMMA coextrusion.
Mounting caps and brackets 304L stainless steel
Gaskets Peroxide-cured EPDM
Construction One-piece housing with long-term tightness
II 2G Ex eb mb IIC T6 Gb – II 2D Ex tb IIIC T80°C Db IP66
Standards and resistance
Category Value
ATEX / IECEx standards IEC 60079-0, IEC 60079-7, IEC 60079-18, IEC 60079-31
Design
Temperature class T6 (Gaz)
Tightness IP66, IP68, IP69K
Impact resistance (IK) IK10
Fire resistance 650°C
Vibration resistance Meets the requirements of EN 60598-1 (tested in accordance with IEC 60068-2-6)
Less
