Manufacturer: Patlite

LR4-EX series signaling towers (40 mm diameter)

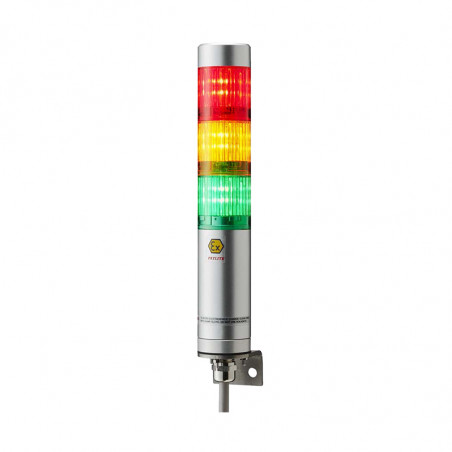

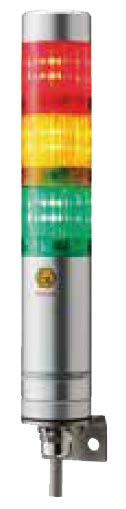

LR4-EX Series Signal Towers (40 mm diameter)

The signal tower is designed for explosive environments and is equipped with universal and energy-saving LED light modules. Vertical and horizontal
lens cuts, combined with a double reflection system, increase
the dispersion of the LED light, creating a unique, full and powerful light.
The lenses and the power module housing are made of polycarbonate and are characterized by
high durability in difficult conditions.

Features:
- Safe in areas with a risk of gas or dust explosions
- Designed for gas and dust zones - 2 and 22
- Compliant with the Atex standard
- Emits light 360°
- The sound module is completely enclosed (without any opening or recess)
- Towers are available with LED modules from 1 to 5 colors (red, orange, green, blue and white)
- IP65 protection class
- Mounting on an angled bracket to the wall or using a ½ '' adapter for mounting on a pipe
- Generates continuous or flashing light
CE II 3 G Ex nA IIC T4 Gc, II 3 D Ex tc IIIC T80°C Dc IP65 2014/34/CATEX: EN 60079-0:2012
/ A11:2013, EN 60079-15:2010, EN 60079-31:2014

Technical data:


Explosion-proof standards:
CE compliance:

Ambient temperature:
Protection degree:
Material:
Light source:
Sound source:
Power supply voltage:
Available LED light module colors:
Cable length:

II 3 G Ex nA IIC T4 Gc, II 3 D Ex tc IIIC T80°C Dc IP65
EN 60079-0:2012 / A11:2013, EN 60079-15:2010,
EN 60079-31:2014

-20 °C to +50 °C
IP65 (according to EN 60529)
Polycarbonate
LED module emitting light omnidirectionally
Sound module 88 dB (at 1 m), 4 different sounds
24V DC


Red, orange, green, blue, and white
3m, Ø 8 mm
Mounting on an angled wall bracket
Using a 3/4” NPT adapter for the tube


Dimensions

3/4” Adapter NPT Angle bracket

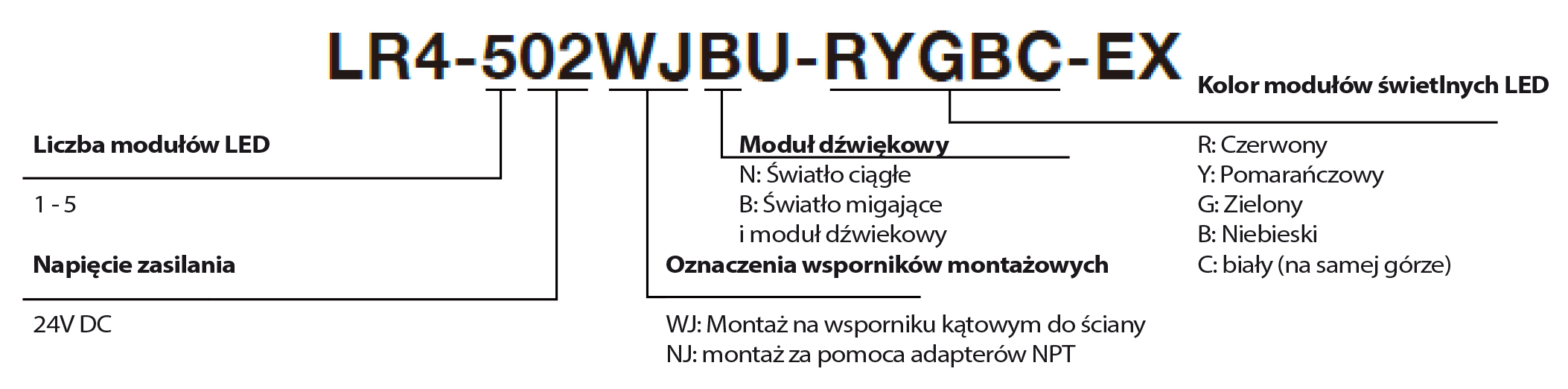

Catalogue number
