NE series signal lamps
NE series signal lamps

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Patlite

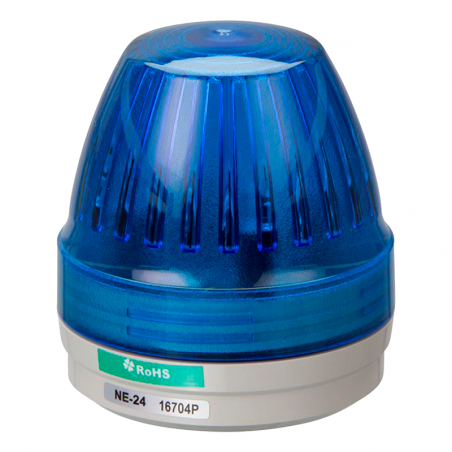

NE series signal lamps

Technical data
Model NE-24
Supply voltage 24VDC NPN/PNP
Power consumption Red 30 mA
  Orange 30 mA
  Green 50 mA
  Blue 50 mA
  Transparent 50 mA
Temperature/humidity -30º C…+60º C
Assembly Inside and outside
Assembly direction Up, down, horizontal
Protection degree IP65
Vibration resistance 19,6 m/s2
Light intensity Red 650 mcd
  Orange 1200 mcd
  Green 1500 mcd
  Blue 300 mcd
  Transparent 1200 mcd
Weight 50 g
Dimensions

Catalogue number Colour
NE -24 - R Red
NE -24 - Y Orange
NE -24 - G Green
NE -24 - B Blue
NE -24 - C White
