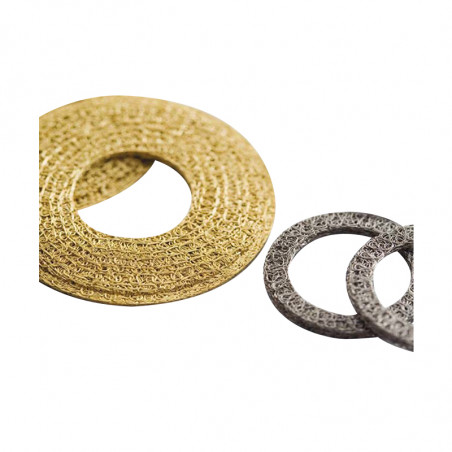

Braided mesh washers
Braided mesh washers

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TEMAS

Braided mesh washers

3.4 BRAIDED MESH WASHERS

Description:
KR Series compressed mesh washers, gaskets, and seals utilize a woven mesh formed under pressure into flexible, high-density profiles.

Applications:
Compressed woven mesh profiles are used as gland rings, grounding buttons, magnetron seals, and in many other applications where a high-density mesh is required. Each application is unique and related to the specific mechanical properties of the seal, so please contact us to discuss your requirements.

Specifications
Diameter 0.11 mm
Monel 853075-NA13 diameter 0.11 mm
Aluminum 5056 AMS4182 diameter 0.13 mm
TCS ASTM 8520
Stainless Steel Alloy 304 Diameter 0.11 mm
PERFORMANCE - TYPICAL DB Attenuation
60 78
FREQUENCY WAVE MONEL ALUMINUM TCS STAINLESS STEEL
10 KHz H 45 40 40
100 KHz H 49 45 65 44
1MHz H 60 60 85 58
1MHz E 125 125 125 125
10MHz E 120 120 120 120
100MHz E 100 100 108 100
400MHz P 98 95 99 94
1GHz P 85 76 76
10 GHz P 80 65 62 60

Tolerance: ± 0.5mm in width

Order example

KR-5-50-0254-0159-0032 is a 25.4 x 15.9 x 3.2mm stainless steel washer. Specify the KR series, wire type, and describe your component by its outside and inside diameter plus thickness (if "O" ring) or by drawing, in the case of a molded gasket or profile section.
