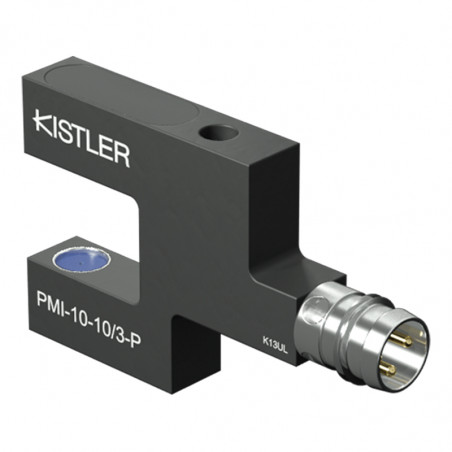

Slotted light barrier (infrared) type PMI
Slotted light barrier (infrared) type PMI

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Vester

Slotted light barrier (infrared) type PMI

Technical data

Circuit: constant light trigger
Voltage: 12...30V
Load current: 200mA
Current consumption: max 60mA
Operation: static
Output with LED: PNP
Function: dark function
Output current: 500 mA
Repeatability: < 0,02mm
Frequency: > 1 kHz
Operating temperature: 0...60°C
EMC: IEC 801.... CE
Type of protection: IP 65

Accuracy

Fork width A: 5 -10 - 20mm,
element diameter: 0,3 - 0,4 - 0,6mm.

Dimensions [mm]

A 5 10 10 10 20
B 10 10 20 30 30

Catalogue number Light barrier with 3 pole M8 socket Terminals - 3 pole M8 socket
PMI-5-10/3-P 6311-00000-3002
PMI-10-10/3-P 6312-00000-3002
PMI-10-20/3-P 6320-00000-3002
PMI-10-30/3-P 6317-00000-3002
P M1-20-30/3-P 6313-00000-3002
