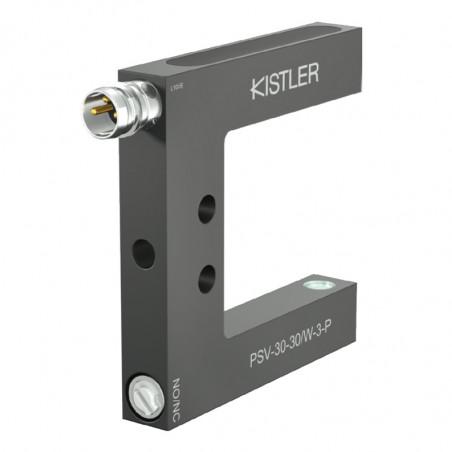

Slotted light barrier (red light) type PSV
  • Slotted light barrier (red light) type PSV

Photos are for informational purposes only. View product specification

Manufacturer: Vester

Slotted light barrier (red light) type PSV

Technical data

Circuit: chopped light trigger
Wave lenght: red light LED 650 nm
Voltage: 12...30V
Current consumption: max 60mA
Operation: static
Output with LED: PNP
Function: bright-dark switch
Output current: 500 mA
Repeatability: < 0,02mm
Frequency: 4kHz
Operating temperature: 0...60°C
EMC: IEC 801.... CE
Type of protection: IP 65

Accuracy

gap width A: 10 - 20/25 - 30 - 40mm,
element diameter: 0,2-0,3- 0,4-0,5mm.

Dimensions [mm]

Type Light barrier Dimensions Terminal 3-pole M8 socket
A B
PSV-10-30/W-3-P 6332-00010-3022 10 30 PSV-10-30/W-3-P DO PSV-40-80/W-3-P
PSV-20-30/W-3-P 6334-00010-3022 20 30
PSV-20-40/W-3-P 6351-00010-3022 20 40
PSV-20-60/W-3-P 6352-00010-3022 20 60
PSV-25-80/W-3-P 6360-00010-3022 25 80
PSV-30-30/W-3-P 6336-00010-3022 30 30
PSV-30-40/W-3-P 6354-00010-3022 30 40
PSV-30-60/W-3-P 6355-00010-3022 30 60
PSV-40-40/W-3-P 6357-00010-3022 40 40
PSV-40-60/W-3-P 6358-00010-3022 40 60
PSV-40-80/W-3-P 6359-00010-3022 40 80
