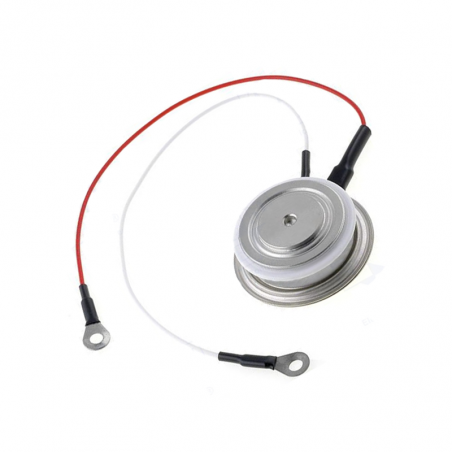

Photos are for informational purposes only. View product specification
please use latin characters
Thyristor Type | IT(AV)/TC [A/°C] |
UDRM URRM [V] |
ITSM [A] |
I2t [A2s] |
di/dt [A/ us] |
Tq [µs] |
duD/dt [V/µs] | Rthjc [°C/W] |
Tj(max) [°C] | Casing |
---|---|---|---|---|---|---|---|---|---|---|
1800V | ||||||||||
T620--2004DN | 200 / 88 | 200 - 1600 | 6000 | 180000 | 800 | 100 | 300 | 0,08 | 125 | 1 |
T620--3004DN | 300 / 80 | 200 - 1600 | 8250 | 340313 | 800 | 100 | 300 | 0,08 | 125 | 1 |
T625--4004DN | 400 / 80 | 200 - 1200 | 7500 | 281250 | 800 | 150 | 300 | 0,08 | 150 | 1 |
T7H8--6504DN | 650 / 65 | 200 - 1600 | 13500 | 911250 | 600 | 150 | 300 | 0,04 | 125 | 2 |
T7H8--7504DN | 750 / 62 | 200 - 1600 | 15750 | 1,2 x 106 | 600 | 150 | 300 | 0,04 | 125 | 2 |
T820--9004DH | 900 / 70 | 200 - 1600 | 22500 | 2,5 x 106 | 400 | 300 | 300 | 0,037 | 125 | 4 |
T9G0--2503DH | 2500/85 | 600 - 1600 | 26700 | 3,56 x 106 | 200 | 500 | 0,015 | 150 | 6 | |
TAS0--2603DH | 2635 / 70 | 1400 - 1800 | 35826 | 6,42 x 106 | 300 | 550 | 800 | 0,01 | 125 | 7 |
TBK7--300HHE | 3000 / 70 | 200 - 600 | 72000 | 25,9 x 106 | 600 | 400 | 300 | 0,012 | 125 | 9 |
T9S0--3403DH | 3450 / 70 | 200 - 800 | 33469 | 5,60 x 106 | 200 | 400 | 600 | 0,015 | 140 | 5 |
TBS7--350HHE | 3500 / 72 | 200 - 1600 | 72000 | 25,9 x 106 | 600 | 400 | 300 | 0,010 | 125 | 10 |
2400V | ||||||||||
T720--3504DN | 350 / 77 | 200 - 2400 | 10500 | 551250 | 600 | 150 | 300 | 0,06 | 125 | 4 |
T720--4504DN | 450 / 65 | 200 - 2400 | 12600 | 793800 | 600 | 150 | 300 | 0,06 | 125 | 4 |
T720--5504DN | 550 / 65 | 200 - 2400 | 15000 | 1,1 x 106 | 600 | 150 | 300 | 0,06 | 125 | 4 |
T7S0--6504DN | 650 / 70 | 1800 - 2400 | 13500 | 911250 | 600 | 150 | 300 | 0,035 | 125 | 3 |
T7S0--7504DN | 750 / 73 | 1800 - 2400 | 15750 | 1,2 x 106 | 600 | 150 | 300 | 0,035 | 125 | 3 |
T820--7504DH | 750 / 70 | 200 - 2400 | 18000 | 1,6 x 106 | 400 | 200 | 300 | 0,037 | 125 | 4 |
T9G0--1003DH | 1000 / 82 | 200 - 2400 | 25500 | 3,2 x 106 | 600 | 250 | 1000 | 0,023 | 125 | 6 |
T9G0--1203DH | 1200 / 85 | 200 - 2400 | 40500 | 8,2 x 106 | 300 | 350 | 300 | 0,023 | 125 | 6 |
TA20--1603DH | 1600 / 80 | 200 - 2200 | 44250 | 9,7 x 106 | 400 | 250 | 300 | 0,015 | 125 | 8 |
T9S0--1803DH | 1800 / 70 | 1600 - 2200 | 19422 | 1,89 x 106 | 200 | 400 | 1000 | 0,015 | 125 | 5 |
TA20--1803DH | 1800 / 85 | 200 - 2200 | 60000 | 18,0 x 106 | 400 | 250 | 300 | 0,015 | 125 | 8 |
TBK7--250HHE | 2500 / 72 | 1200 - 2100 | 67500 | 22,7 x 106 | 600 | 250 | 500 | 0,012 | 125 | 9 |
4500V | ||||||||||
T8K7--3503DH | 350 / 76 | 3600 - 4500 | 8250 | 340313 | 500 | 250 | 1000 | 0,040 | 125 | 4 |
T9K7--0802DH | 800 / 79 | 3600 - 4500 | 13500 | 911250 | 200 | 500 | 800 | 0,023 | 125 | 6 |
TAK7--1202DH | 1200 / 82 | 3600 - 4400 | 60000 | 18,0 x 106 | 400 | 500 | 1000 | 0,015 | 125 | 8 |
TAS7--1603DH | 1650 / 70 | 3200 - 4400 | 20742 | 2,15 x 106 | 300 | 550 | 800 | 0,01 | 125 | 7 |
TBK7--1702HHE | 1650 / 70 | 3600 - 4500 | 39000 | 7,6 x 106 | 600 | 400 | 1000 | 0,012 | 125 | 9 |
TC20--2402DH | 2450 / 74 | 3600 - 4400 | 28284 | 4,00 x 106 | 300 | 500 | 400 | 0,009 | 125 | 11 |
TDK4--3302DH | 3300 / 72 | 3600 - 4400 | 47140 | 1,11 x 107 | 300 | 400 | 2000 | 0,005 | 125 | 12 |
TCS4--340HDH | 3400 / 70 | 1800 - 2800 | 56568 | 1,60 x 107 | 600 | 400 | 1000 | 0,007 | 125 | 13 |
TDS4--40 | 4000 | 1600 - 3000 | TBD | TBD | TBD | TBD | TBD | 0,007 | 125 | 14 |
TDS4--50 | 5000 | 200 - 1400 | TBD | TBD | TBD | TBD | TBD | 0,007 | 125 | 14 |
6500V | ||||||||||
T8KC--3203DH | 325 / 75 | 6000 - 6500 | 4243 | 9 x 104 | 200 | 450 | 1000 | 0,038 | 125 | 4 |
T9KC--0603DH | 600 / 72 | 6000 - 6500 | 7307 | 2,67 x 105 | 200 | 600 | 1000 | 0,022 | 125 | 6 |
TBKC--1203DH | 1250 / 70 | 6000 - 6500 | 20742 | 2,15 x 106 | 200 | 800 | 1000 | 0,011 | 125 | 9 |
POWEREX THYRISTORS CASINGS
Drawing 1 dimensions [mm]
|
Drawing 2 dimensions [mm]
|
Drawing 3 dimensions [mm]
|
---|---|---|
Drawing 4 dimensions [mm]
|
Drawing 5 dimensions[mm]
|
Drawing 6 dimensions[mm]
|
Drawing 7 dimensions [mm]
|
Drawing 8 dimensions [mm]
|
Drawing 9 dimensions [mm]
|
Drawing 10 dimensions [mm]
|
Drawing 11 dimensions [mm]
|
Drawing 12 dimensions [mm]
|
Drawing 13 dimensions[mm]
|
Drawing 14 dimensions[mm]
|
|
Send an inquiry
Are you interested in this product? Do you need additional information or individual pricing?
Contact us
Thyristor Type | IT(AV)/TC [A/°C] |
UDRM URRM [V] |
ITSM [A] |
I2t [A2s] |
di/dt [A/ us] |
Tq [µs] |
duD/dt [V/µs] | Rthjc [°C/W] |
Tj(max) [°C] | Casing |
---|---|---|---|---|---|---|---|---|---|---|
1800V | ||||||||||
T620--2004DN | 200 / 88 | 200 - 1600 | 6000 | 180000 | 800 | 100 | 300 | 0,08 | 125 | 1 |
T620--3004DN | 300 / 80 | 200 - 1600 | 8250 | 340313 | 800 | 100 | 300 | 0,08 | 125 | 1 |
T625--4004DN | 400 / 80 | 200 - 1200 | 7500 | 281250 | 800 | 150 | 300 | 0,08 | 150 | 1 |
T7H8--6504DN | 650 / 65 | 200 - 1600 | 13500 | 911250 | 600 | 150 | 300 | 0,04 | 125 | 2 |
T7H8--7504DN | 750 / 62 | 200 - 1600 | 15750 | 1,2 x 106 | 600 | 150 | 300 | 0,04 | 125 | 2 |
T820--9004DH | 900 / 70 | 200 - 1600 | 22500 | 2,5 x 106 | 400 | 300 | 300 | 0,037 | 125 | 4 |
T9G0--2503DH | 2500/85 | 600 - 1600 | 26700 | 3,56 x 106 | 200 | 500 | 0,015 | 150 | 6 | |
TAS0--2603DH | 2635 / 70 | 1400 - 1800 | 35826 | 6,42 x 106 | 300 | 550 | 800 | 0,01 | 125 | 7 |
TBK7--300HHE | 3000 / 70 | 200 - 600 | 72000 | 25,9 x 106 | 600 | 400 | 300 | 0,012 | 125 | 9 |
T9S0--3403DH | 3450 / 70 | 200 - 800 | 33469 | 5,60 x 106 | 200 | 400 | 600 | 0,015 | 140 | 5 |
TBS7--350HHE | 3500 / 72 | 200 - 1600 | 72000 | 25,9 x 106 | 600 | 400 | 300 | 0,010 | 125 | 10 |
2400V | ||||||||||
T720--3504DN | 350 / 77 | 200 - 2400 | 10500 | 551250 | 600 | 150 | 300 | 0,06 | 125 | 4 |
T720--4504DN | 450 / 65 | 200 - 2400 | 12600 | 793800 | 600 | 150 | 300 | 0,06 | 125 | 4 |
T720--5504DN | 550 / 65 | 200 - 2400 | 15000 | 1,1 x 106 | 600 | 150 | 300 | 0,06 | 125 | 4 |
T7S0--6504DN | 650 / 70 | 1800 - 2400 | 13500 | 911250 | 600 | 150 | 300 | 0,035 | 125 | 3 |
T7S0--7504DN | 750 / 73 | 1800 - 2400 | 15750 | 1,2 x 106 | 600 | 150 | 300 | 0,035 | 125 | 3 |
T820--7504DH | 750 / 70 | 200 - 2400 | 18000 | 1,6 x 106 | 400 | 200 | 300 | 0,037 | 125 | 4 |
T9G0--1003DH | 1000 / 82 | 200 - 2400 | 25500 | 3,2 x 106 | 600 | 250 | 1000 | 0,023 | 125 | 6 |
T9G0--1203DH | 1200 / 85 | 200 - 2400 | 40500 | 8,2 x 106 | 300 | 350 | 300 | 0,023 | 125 | 6 |
TA20--1603DH | 1600 / 80 | 200 - 2200 | 44250 | 9,7 x 106 | 400 | 250 | 300 | 0,015 | 125 | 8 |
T9S0--1803DH | 1800 / 70 | 1600 - 2200 | 19422 | 1,89 x 106 | 200 | 400 | 1000 | 0,015 | 125 | 5 |
TA20--1803DH | 1800 / 85 | 200 - 2200 | 60000 | 18,0 x 106 | 400 | 250 | 300 | 0,015 | 125 | 8 |
TBK7--250HHE | 2500 / 72 | 1200 - 2100 | 67500 | 22,7 x 106 | 600 | 250 | 500 | 0,012 | 125 | 9 |
4500V | ||||||||||
T8K7--3503DH | 350 / 76 | 3600 - 4500 | 8250 | 340313 | 500 | 250 | 1000 | 0,040 | 125 | 4 |
T9K7--0802DH | 800 / 79 | 3600 - 4500 | 13500 | 911250 | 200 | 500 | 800 | 0,023 | 125 | 6 |
TAK7--1202DH | 1200 / 82 | 3600 - 4400 | 60000 | 18,0 x 106 | 400 | 500 | 1000 | 0,015 | 125 | 8 |
TAS7--1603DH | 1650 / 70 | 3200 - 4400 | 20742 | 2,15 x 106 | 300 | 550 | 800 | 0,01 | 125 | 7 |
TBK7--1702HHE | 1650 / 70 | 3600 - 4500 | 39000 | 7,6 x 106 | 600 | 400 | 1000 | 0,012 | 125 | 9 |
TC20--2402DH | 2450 / 74 | 3600 - 4400 | 28284 | 4,00 x 106 | 300 | 500 | 400 | 0,009 | 125 | 11 |
TDK4--3302DH | 3300 / 72 | 3600 - 4400 | 47140 | 1,11 x 107 | 300 | 400 | 2000 | 0,005 | 125 | 12 |
TCS4--340HDH | 3400 / 70 | 1800 - 2800 | 56568 | 1,60 x 107 | 600 | 400 | 1000 | 0,007 | 125 | 13 |
TDS4--40 | 4000 | 1600 - 3000 | TBD | TBD | TBD | TBD | TBD | 0,007 | 125 | 14 |
TDS4--50 | 5000 | 200 - 1400 | TBD | TBD | TBD | TBD | TBD | 0,007 | 125 | 14 |
6500V | ||||||||||
T8KC--3203DH | 325 / 75 | 6000 - 6500 | 4243 | 9 x 104 | 200 | 450 | 1000 | 0,038 | 125 | 4 |
T9KC--0603DH | 600 / 72 | 6000 - 6500 | 7307 | 2,67 x 105 | 200 | 600 | 1000 | 0,022 | 125 | 6 |
TBKC--1203DH | 1250 / 70 | 6000 - 6500 | 20742 | 2,15 x 106 | 200 | 800 | 1000 | 0,011 | 125 | 9 |
POWEREX THYRISTORS CASINGS
Drawing 1 dimensions [mm]
|
Drawing 2 dimensions [mm]
|
Drawing 3 dimensions [mm]
|
---|---|---|
Drawing 4 dimensions [mm]
|
Drawing 5 dimensions[mm]
|
Drawing 6 dimensions[mm]
|
Drawing 7 dimensions [mm]
|
Drawing 8 dimensions [mm]
|
Drawing 9 dimensions [mm]
|
Drawing 10 dimensions [mm]
|
Drawing 11 dimensions [mm]
|
Drawing 12 dimensions [mm]
|
Drawing 13 dimensions[mm]
|
Drawing 14 dimensions[mm]
|
|
