Manufacturer: SALTEK

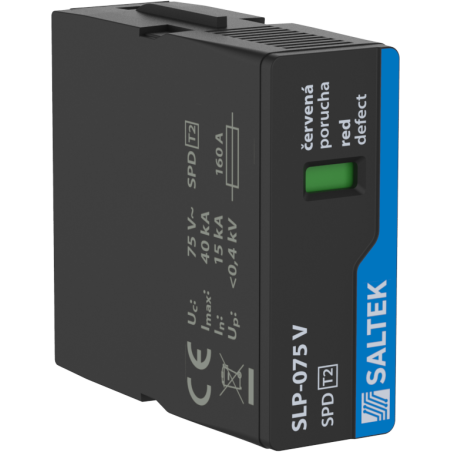

SLP-075 V/0 - Surge protector - SPD

  • SLP-075 V/0
  • Type of SPD T2
  • Maximum operating voltage 75.00 V AC
Parameter name Parameter value
Type of SPD T2
Maximum operating voltage Uc 75.00 V AC
Maximum operating voltage Uc 100.00 V DC
Short-circuit current rating ISCCR 50.0 kA
Nominal discharge current (8/20 µs) In 15.00 kA
Maximum discharge current (8/20 µs) Imax 40.00 kA
Voltage protection level Up 0.40 kV
Response time ta 25 ns
Fault indication red indication field
ETIM Class EC000941
Customs tariff number 85363030
EAN 8595090518112
