Manufacturer: EMC Prima

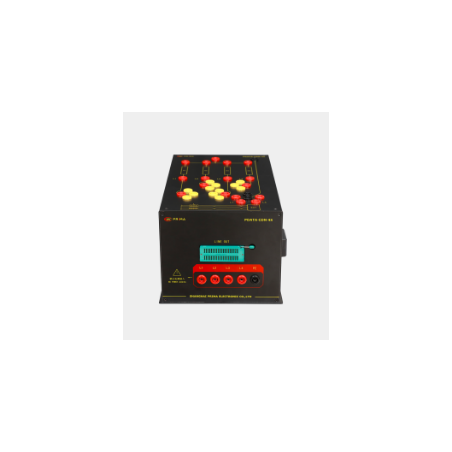

CAN Line CDN PDATA-CDN-4S

  • PDATA-CDN-4S

PDATA-CDN-4S is a network signal line surge suppressor system specifically designed to meet electromagnetic compatibility (EMC) surge immunity testing (SUG) requirements. It is used to test surges in signal line networks of unprotected, symmetrical connection lines. The device allows you to perform surge tests on the communication ports of the tested equipment.

Parameters:

Parameter Value
Product Model PDATA-CDN-4S
Voltage Open Circuit 1.2/50 micro;s 10/700 micro;s
Short Circuit Current 8/20 micro;s 5/320 micro;s
Maximum Voltage 6.0 kV
Current Limiter (Resistor) 25Ω, 40Ω, 80Ω, 160Ω
Network Isolation Inductance 20Ω
Coupling Element 0.5ΩF, 90ΩV, Gas Discharge Tube
Communication 100M
