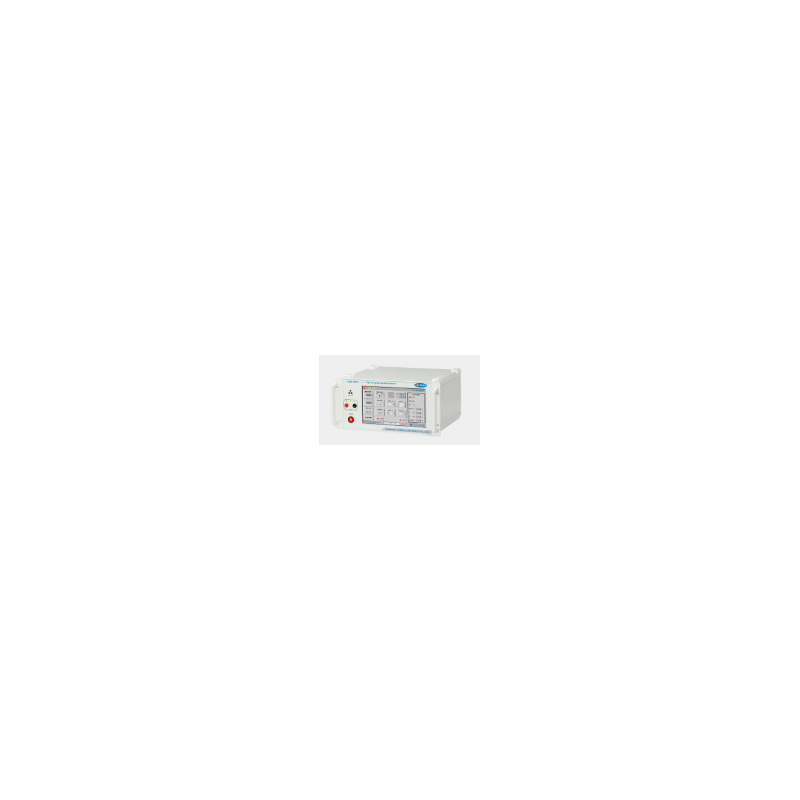

EOS TVS8/20TC Simulator

  • TVS8/20TC

The TVS8/20TC surge simulator is designed for testing mobile phones and integrated circuits, including electronic components such as discharge tubes. It complies with the IEC61000-4-5 and IEC801-5 standards published by the International Electrotechnical Commission (IEC), as well as the national standard GB/T17626.5. The device meets the technical requirements of these standards, featuring intelligent control, stable operation, and ease of operation. It is widely used in the mobile phone, integrated circuit, and electronic component industries.

Features:

  • Ergonomic design
  • 10.1-inch color touchscreen
  • Freely switchable positive and negative polarity
  • Switchable between Chinese and English languages
  • Operating modes: custom, reinforced, and standard
  • Excellent technology, durable construction
  • Maximum test voltage reaches 1 kV

Standard compliance:

  • IEC/EN 60664
  • GB/T17626.5 / IEC 61000-4-5
  • ITU K20
  • ANSI C62.41 / 45
  • GB/T16927.1
  • IEC/EN 61643-1
  • ITU K44
  • IEC/EN 61010

Technical parameters:

Parameter Value
Model TVS8/20TC
Open Circuit Voltage 3.0 V ~ £1000.0 V £10%
Voltage Resolution —
Rise Time 1.2 microseconds £30%
Duration 50 µs ±20%
Short circuit current 1.5 A ~ ±500.0 A ±10%
Rise time (at short circuit) 8 µs ±20%
Duration (at short circuit) 20 µs ±20%
Polarity +, -, +/-, -/+
Output Impedance 2Ω, 12Ω, 42Ω ±10%
Step Voltage 0 V ~ 1000.0 V
Interval Between Surge Events 3 s ~ 9999 s
Number of Surge Events 1 c ~ 6000 c
Trigger Mode Manual, External, Interval Triggering
Surge Output Surge Out
Coupling Modes Capacitor/Inductor, Capacitor/Diode, Diode/Diode, Diode/Inductor
Coupling Network Umax DC 30 V Imax 5 A
