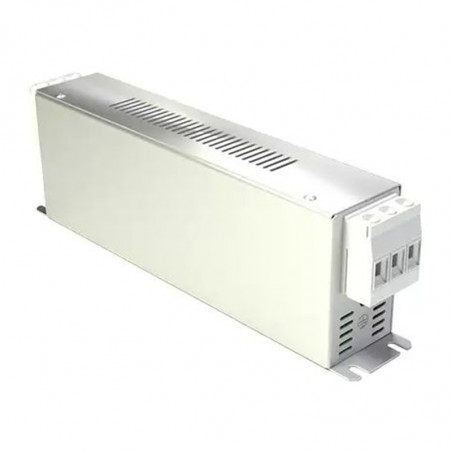

Three phase filters F.LL.D3 BN series

Nominal voltage  (UN): 520VAC; 50/60Hz
Nominal current (IN): at ambient temperature 40°C
Leakage current (IL): 260mA ( 1 phase operation)
Voltage test  (2s) line - ground 3470 VDC
line - line 1700 VDC
Temperature range od -25°C do 100°C
Climatic category HMF (25/100/21)

Type LR
[A]		 L
[mH]		 Cx1
[µF]		 Cx2
[µF]		 Cy
[µF]		 R
[mΩ]
F.LL.D3.007A.BN.R1 7(7.7) 3x2 3x5.6 3x3.3 1x3.3 3x1 + 1x0.66
F.LL.D3.016A.BN.R1 16(17.5) 3x1.9 3x5.6 3x3.3 1x3.3 3x1 + 1x0.66
F.LL.D3.030A.BN.R1 30(32.9) 3x1.4 3x5.6 3x3.3 1x3.3 3x1 + 1x0.66
F.LL.D3.042A.BN.R1 42(46) 3x1.1 3x5.6 3x3.3 1x3.3 3x1 + 1x0.66
F.LL.D3.055A.BN.R1 55(60.2) 3x0.7 3x5.6 3x3.3 1x3.3 3x1 + 1x0.66
F.LL.D3.075A.BN.R1 75(82.2) 3x0.8 3x5.6 3x3.3 1x3.3 3x1 + 1x0.66
F.LL.D3.100A.BN.R1 100(109.5) 3x0.5 3x5.6 3x3.3 1x3.3 3x1 + 1x0.66
F.LL.D3.130A.BN.R1 130(142.4) 3x0.4 3x5.6 3x3.3 1x3.3 3x1 + 1x0.66
F.LL.D3.150A.BN.R1 150(164) 3x0.3 3x5.6 3x3.3 1x3.3 3x1 + 1x0.66
F.LL.D3.180A.BN.R1 180(197.1) 3x0.3 3x5.6 3x3.3 1x3.3 3x1 + 1x0.66

Dimensions [mm] and terminals

Typ A B C D E F G H I

F.LL.D3.007A.BN.R1

 190 70 40 160 180 20 4.5 2 M5

F.LL.D3.016A.BN.R1

 250 70 45 220 235 25 5.4 2 M5

F.LL.D3.030A.BN.R1

 270 85 50 240 255 30 5.4 2 M5

F.LL.D3.042A.BN.R1

 310 85 50 280 295 30 5.4 2 M6

F.LL.D3.055A.BN.R1

 250 90 85 220 235 60 5.4 2 M6

F.LL.D3.075A.BN.R1

 270 135 80 240 255 60 6.5 3 M6

F.LL.D3.100A.BN.R1

 270 150 90 240 255 65 6.5 3 M10

F.LL.D3.130A.BN.R1

 270 150 90 240 255 65 6.5 3 M10

F.LL.D3.150A.BN.R1

 380 170 120 350 365 102 6.5 3 M10

F.LL.D3.180A.BN.R1

 380 170 120 350 365 102 6.5 3 M10

Scheme
rysunek
Casing
rysunek

Characteristics - damping
rysunek
