Photos are for informational purposes only. View product specification
please use latin characters
- Rated current: 20-600A160-400A500-600A
- Rated voltage: 2000VDC
- Breaking capacity: 100kA at 2000Vdc, L / R < 15ms100kA at 1500Vdc, L / R
Code | Rated voltage [Vdc] | Rated current [A] | I2t [A2s] |
Watts Loss [W] |
Housing | ||
---|---|---|---|---|---|---|---|
Pre-Arcing | Total at 2000V | 0,8 ln | ln | ||||
170M2046 |
2000 | 20 | 85 | 240 | 9 | 12 | Drawing 1 |
170M2047 |
25 | 130 | 390 | 9 | 16 | ||
170M2048 |
32 | 220 | 645 | 11 | 18 | ||
170M2049 |
40 | 390 | 1140 | 12 | 20 | ||
170M2050 |
50 | 610 | 1780 | 17 | 33 | ||
170M2051 |
63 | 1030 | 3000 | 20 | 39 | ||
170M2052 |
80 | 1555 | 4550 | 28 | 53 | ||
170M2053 |
100 | 2680 | 7840 | 33 | 63 | ||
170M2054 |
125 | 4110 | 12,02 | 42 | 79 | ||
170M2055 |
160 | 6620 | 19,36 | 45 | 87 | ||
170M2056 |
200 | 10,72 | 31,36 | 50 | 95 | ||
170M2057 |
215 | 21,87 | 64 | 51 | 97 | ||
170M2039 |
2000 | 160 | 7875 | 75,96 | 68 | 91 | Drawing 2 |
170M2040 |
200 | 12,3 | 118,67 | 85 | 113 | ||
170M2041 |
250 | 21,87 | 211 | 100 | 133 | ||
170M2042 |
315 | 38,88 | 375,11 | 119 | 158 | ||
170M2043 |
400 | 65,71 | 633,965 | 148 | 176 | ||
170M2044 |
2000 | 500 | 105,851 | 163,01 | 109 | 230 | Drawing 3 |
170M2045 |
600 | 188,179 | 289,796 | 153 | 305 |

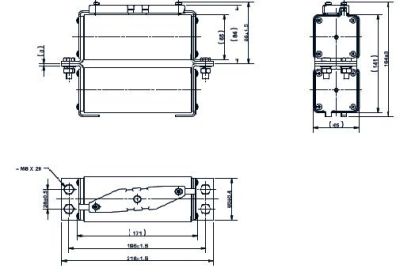

Dimensions [mm]
Drawing 1
Drawing 2
Drawing 3
