Manufacturer: EMC Prima

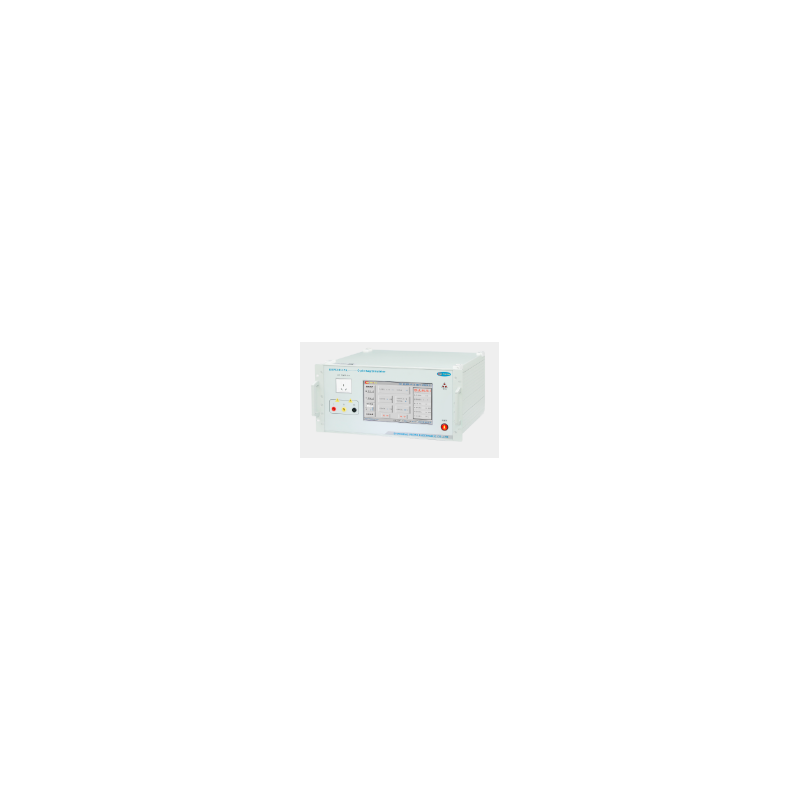

AC Voltage Drop Simulator – DRP61011TA

  • DRP61011TA

The DRP61011TA Frequency Sag Generator is a precision interference simulator designed specifically for testing immunity to voltage sags, short circuit interruptions and other interference. Used to evaluate the behavior of electrical and electronic devices connected to the low-voltage power grid under conditions such as voltage dips and short-term power outages.

Features:

  • Positive and negative polarity switching capability
  • Operation via a 10.1-inch color touchscreen
  • Free positive and negative polarity conversion
  • Chinese and English language switching capability
  • Operating modes: custom, boost, and standard
  • Built-in RJ45 interface, optional remote control
  • Voltage drop injection phase: asynchronous or freely adjustable within the range of 0–360°

Standards:

  • IEC61000-4-11/GB/T17626.11

Parameters:

Parameter DRP61011TA DRP61011TB
Product Model DRP61011TA DRP61011TB
Voltage Change Range 0% ~ 120% 0% ~ 120%
Duration 0.5 ~ 6000.0 cycles 0.5 ~ 6000.0 cycles
Resolution 0.5 cycles 0.5 cycles
Switching phase setting 0° ~ 359° or asynchronous 0° ~ 359° or asynchronous
Voltage Change Repetitions 1 ~ 60000 times 1 ~ 60000 times
Interval Time 0.5 ~ 6000.0 cycles 0.5 ~ 6000.0 cycles
Trigger Mode Automatic, Internal Automatic, Internal
Decoupling Current Rating Single Phase AC 110 ~ 220V AC 110 ~ 220V
Operating Power Supply AC 220V ±10%, 50/60 Hz AC 220V ±10%, 50/60 Hz
Standard Voltage Drop Levels 0%, 40%, 70%, 80%, 120% 0%, 40%, 70%, 80%, 120%
Voltage Drop or Interruption 1° 1°
Phase Resolution 1° 1°
Load Decoupling Capacity AC 110 ~ 220V, 10A AC 110 ~ 220V, 20A
